CHR70 EX200-2 EX200-2m EX200-3 EX200-3C EX200-3E EX200-3m EX200-5 EX200-5 JPN EX200-5HG EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200K-2 EX200K-2m EX200K-3 EX200K-3m EX200LCK-2m EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX220-2 EX220-3 EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC) EX225USRK(LC) EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE HC2410 HR1200SG HR1200SGM RX2300 ZX200 Hitachi

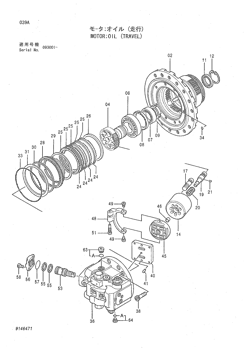

ENTIRE GROUP OIL MOTOR (TRAVEL):
| Pos. | Part No | Qty | Parts name | Comments |
| | 9133918 | [1] | MOTOR;OIL | 9149085 9133918 |
| | -9149085 | [1] | MOTOR;OIL | |
| 2 | 1014547 | [1] | HOUSING | |
| 4 | 2026713 | [1] | DISC;DRIVING | |
| 6 | 4198783 | [1] | BRG.;ROL. | |
| 7 | 4198998 | [1] | BRG.;ROL. | |
| 8 | 4222980 | [1] | SPACER | |
| 9 | 4178173 | [1] | NUT;BRG. | |
| 11 | 4260561 | [1] | SEAL;OIL | |
| 12 | 4116290 | [1] | RING;RETAINING | |
| 14 | 2034880 | [1] | ROTOR | |
| 17 | 8050658 | [7] | PISTON | |
| 19 | 3064069 | [1] | SHAFT;CENTER | |
| 20 | 4179181 | [1] | SPRING;COMPRES. | |
| 21 | 4198956 | [1] | PIN | |
| 24 | 3037401 | [4] | PLATE;FRICTION | |
| 25 | 3032432 | [5] | PLATE | |
| 26 | 4246784 | [1] | SPACER | |
| 28 | 3047473 | [1] | PISTON | |
| 29 | 4232766 | [1] | D-RING | |
| 30 | 4232767 | [1] | D-RING | |
| 31 | 3047472 | [1] | SPRING;DISC | |
| 33 | 4248871 | [1] | O-RING | Y 4396017 |
| 33 | 4396017 | [1] | O-RING | |
| 34 | 4506415 | [1] | O-RING | |
| 36 | 9145186 | [1] | VALVE;BRAKE | 9149086 9145186 |
| 36 | -9149086 | [1] | VALVE;BRAKE | |
| 38 | M341650 | [8] | BOLT;SOCKET | |
| 40 | 3064074 | [1] | PLATE | |
| 41 | 4266256 | [2] | PIN;KNOCK | Y 4364104 |
| 41 | 4364104 | [2] | PIN;KNOCK | |
| 45 | 2034875 | [1] | VALVE | |
| 46 | 4234628 | [1] | BUSHING | |
| 48 | 3052403 | [1] | LINK | |
| 49 | 4255238 | [2] | PLUG | |
| 51 | 4262561 | [1] | BOLT;REAMER | |
| 53 | 9130524 | [1] | PISTON;SERVO | 9130524 |
| 55 | 4260308 | [2] | RING;PISTON | |
| 56 | 4332406 | [1] | COVER | |
| 57 | 4265579 | [1] | O-RING | |
| 58 | M341225 | [4] | BOLT;SOCKET | |
| 63 | 9134112 | [1] | PLUG | |
| 63A. | 4506418 | [1] | O-RING | |
| 64 | 9134109 | [1] | PLUG | |
| 64A. | 4506408 | [1] | O-RING | |
Hydraulic pumps are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. The pump & Motor parts are built to fit to the genuine drive gearbox system.
2. The pump & Motor parts are supplied strictly according to the genuine parts catalog.
3. All the pump & Motor components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump & motor parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
