186-4605 1864605 Excavator Main Wiring Harness for E320C AS-CHASSIS

Product Categories

Excavator Spare Parts [2548]
Excavator Final Drive [398]
Excavator Swing Gear [321]
Excavator Engine Parts [1367]
Excavator Travel Motor [142]
Excavator Swing Motor [66]
Excavator Bearing [310]
Excavator Hydraulic Pump [414]
Excavator Main Control Valve [162]
Excavator Electric Parts [657]
Excavator Air Conditioner Parts [288]
Excavator Monitor [71]
Excavator Controller [139]
Excavator Undercarriage Parts [39]
Excavator Hydraulic Cylinder [73]
Bulldozer Spare Parts [150]
Construction Machinery Parts [216]
Excavator Filter [311]

Guangzhou Anto Machinery Parts Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

186-4605 1864605 Excavator Main Wiring Harness for E320C AS-CHASSIS

Brand Name : OEM

Model Number : 186-4605

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Supply Ability : 100-2000

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : electrical spare parts

Model : E320C

Parts no. : 186-4605

Parts name : excavator main wire harness

Warranty : 6/12 months

Package : Standard Box package

Contact Now

186-4605 1864605 Main Wiring Harness Used For E320C Caterpillar Excavator Parts

Specification

Excavator spare parts name	Main wiring harness
Equipment Model	E320C
Parts Category	excavator electrical spare parts
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Application

EXCAVATORS CAT E320C

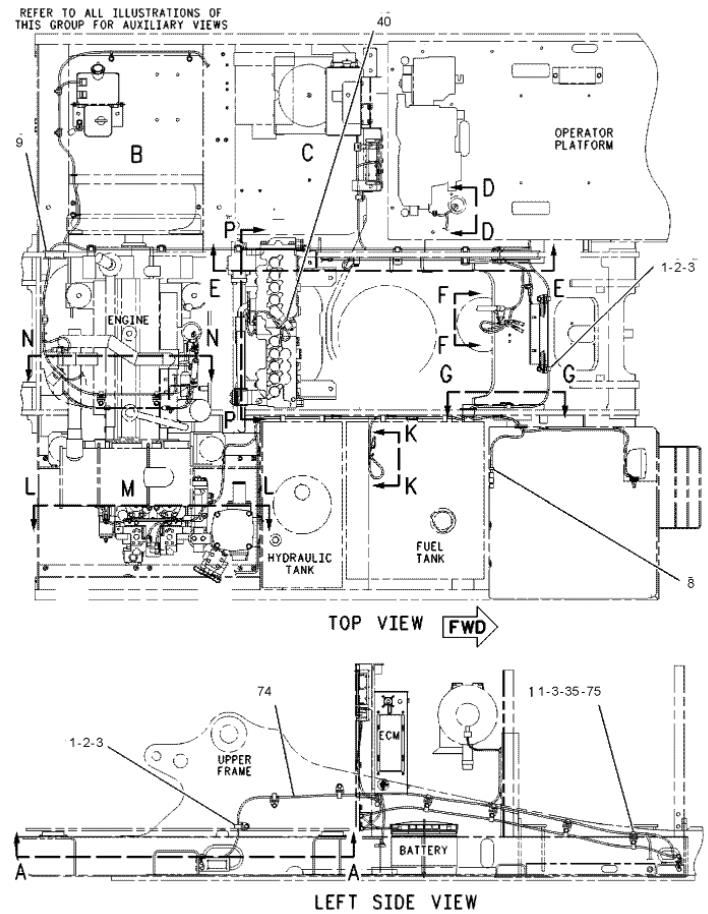

parts diagram

Pos.	Part No	Qty	Parts name	Comments
1	111-4837	[23]	CLIP
2	8T-4137 M	[45]	BOLT (M10X1.5X20-MM)
3	8T-4121	[86]	WASHER-HARD (11X21X2.5-MM THK)
4	9M-8406	[5]	CLIP (LOOP)
6	111-4838	[6]	CLIP
7	111-4839	[6]	STRAP
8	3S-2093	[24]	STRAP-CABLE
9	7Y-8165	[1]	GROMMET
10	8T-4191 M	[16]	BOLT (M10X1.5X16-MM)
11	4D-8123	[2]	CLIP (LOOP)
12	6D-4244	[2]	CLIP (LOOP)
13	7Y-8167	[1]	GROMMET (50-MM ID)
16	3T-5760	[2]	BATTERY GP (12-VOLT, 750-CCA)
17	6W-6005	[1]	HOLD-DOWN-BATTERY
18	5I-8270	[1]	COVER-BATTERY
19	163-6775	[1]	CABLE AS
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	5P-0747 E		CABLE (00-GA, BLACK)(64CM)
	7N-5274	[1]	COVER AS-TERMINAL (BLACK)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-8909	[1]	COVER-TERMINAL (BLACK)
	3S-6050	[1]	TERMINAL AS-BATTERY (NEGATIVE)(397CM)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
20	163-6774	[1]	CABLE AS
	1S-7252	[1]	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)
	5P-0761 E		CABLE (00-GA, RED)(397CM)
	8N-0869	[1]	COVER-TERMINAL (RED)
	8N-1725	[1]	COVER AS-TERMINAL (RED)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	3S-6049	[1]	TERMINAL AS-BATTERY (POSITIVE)
	1M-6119	[1]	BOLT (5/16-18X1.375-IN)
	1M-6120	[1]	NUT (5/16-18-THD)
21	170-6929	[1]	CABLE AS
	5P-0761 E		CABLE (00-GA, RED)(31CM)
	9G-0002	[1]	COVER AS-TERMINAL (RED)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	9G-0005	[1]	COVER AS-TERMINAL (BLACK)
	8L-8413	[1]	STRAP-CABLE (WHITE)
	8C-5918	[1]	TERMINAL AS-BATTERY (NEGATIVE)
	8T-9756	[1]	TERMINAL AS-BATTERY (POSITIVE)
22	6K-8178	[6]	CLIP (LOOP)
23	163-6621 Y	[1]	PANEL GP-CIRCUIT BREAKER
24	8T-4136 M	[6]	BOLT (M10X1.5X25-MM)
27	167-3583	[1]	STRAP AS-GROUND
28	7X-2621 M	[10]	BOLT (M10X1.5X12-MM)
29	116-0118	[22]	CLIP
30	111-4836	[17]	CLIP
31	163-6749	[1]	HARNESS AS-PLATFORM
	102-8802	[4]	KIT-RECEPTACLE (2-PIN)
	102-8804	[2]	KIT-RECEPTACLE (4-PIN)
	102-8801	[3]	KIT-RECEPTACLE (12-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
32	7G-1060	[1]	STRAP AS-GROUND
33	8M-2773	[2]	CLIP (LOOP)
34	033-8248	[2]	CLIP (LOOP)
35	8T-4195 M	[5]	BOLT (M10X1.5X30-MM)
36	163-6786	[1]	BRACKET
37	6V-5683 M	[4]	BOLT (M6X1X16-MM)
38	9X-8256	[6]	WASHER (6.6X12X2-MM THK)
39	163-6779	[1]	BRACKET AS
40	7K-1181	[7]	STRAP-CABLE
41	5C-7261 M	[1]	NUT (M8X1.25-THD)
42	8T-4226	[1]	WASHER-PLATED (10.5X45X3-MM THK)
43	8T-4133 M	[2]	NUT (M10X1.5-THD)
44	5I-8304	[1]	ROD
46	116-0068	[1]	BRACKET
47	163-6750	[1]	HARNESS AS-ALARM (HORN)
	155-2270	[1]	KIT-CONNECTING PLUG (2-PIN)
			(INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
48	124-0986	[1]	GROMMET
49	8T-4185 M	[1]	BOLT (M10X1.5X50-MM)
50	2G-8767	[2]	WASHER (10.5X60X3-MM THK)
51	6G-2256	[2]	CLAMP
52	6G-2263	[2]	SPACER (10.5X19X28.5-MM THK)
53	132-1806	[1]	STRAP AS-GROUND
55	170-9336	[1]	BRACKET AS
	7T-1099	[2]	LINK
56	7I-2673	[8]	STRAP-CABLE
57	7Y-5226 M	[1]	NUT (M5X0.8-THD)
58	8T-0328	[2]	WASHER-HARD (5.5X10X1-MM THK)
59	7X-2533 M	[1]	BOLT (M6X1X35-MM)
60	4J-9448	[1]	LUG
61	8J-1256	[1]	CLIP (LOOP)
62	7X-0818 M	[3]	BOLT (M8X1.25X45-MM)
63	5P-4116	[5]	WASHER-HARD (8.8X20.5X2-MM THK)
64	7Y-1924	[3]	SPACER (9X19X23-MM THK)
65	8T-6912 M	[2]	BOLT (M8X1.25X50-MM)
66	085-7329	[2]	SPACER (9X19X30-MM THK)
67	8T-0286 M	[1]	BOLT (M5X0.8X8-MM)
68	7X-2619 M	[1]	BOLT (M6X1X10-MM)
69	102-7880	[1]	BRACKET
70	8T-4182 M	[1]	BOLT (M10X1.5X45-MM)
71	8T-5005 M	[2]	BOLT (M10X1.5X70-MM)
72	4I-7889	[3]	SPACER (11X25X45-MM THK)
73	3V-4791	[1]	GROMMET
74	186-4605	[1]	HARNESS AS-CHASSIS
	102-8802	[6]	KIT-RECEPTACLE (2-PIN)
	102-8803	[2]	KIT-RECEPTACLE (3-PIN)
	102-8805	[1]	KIT-RECEPTACLE (6-PIN)
	102-8801	[1]	KIT-RECEPTACLE (12-PIN)
			(EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE)
	155-2265	[1]	KIT-CONNECTING PLUG (8-PIN)
	155-2260	[4]	KIT-CONNECTING PLUG (3-PIN)
	155-2270	[16]	KIT-CONNECTING PLUG (2-PIN)
	155-2274	[2]	KIT-CONNECTING PLUG (6-PIN)
	155-2270	[2]	KIT-CONNECTING PLUG (2-PIN)
			(EACH PLUG KIT INCLUDES PLUG AS AND WEDGE & INTERFACE SEAL)
75	4K-8864	[4]	CLIP (LOOP)
76	8T-4172 M	[1]	BOLT (M10X1.5X80-MM)
	E		ORDER BY THE CENTIMETER
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

186-4605 1864605 Excavator Main Wiring Harness for E320C AS-CHASSIS

Description

Harness assemblies are designed to reliably power machine electronics and systems under demanding operating conditions. Direct OEM replacement harness assemblies allow easy field service of machines with a harness made to meet exact machine requirements.
Attributes:
• OEM direct replacement
• Heat resistant
• ECM harness
Applications:
Control harness assembly is used for transmitting signals and electrical power from electronic control module to sensors in engines.

Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
