4445648 ZX70 Swing Device Gearbox For HITACHI Excavator Swing Reduction Gear

Product Categories
Guangzhou Anto Machinery Parts Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

4445648 ZX70 Swing Device Gearbox For HITACHI Excavator Swing Reduction Gear

  • 1
  • 2

Brand Name : OEM

Model Number : 4445648

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C

Supply Ability : 568 PCS per week

Delivery Time : 3-7 working days

Packaging Details : Wooden box for heavy parts, paper carton for light parts

Category : Excavator Swing Reduction Gearbox

Machine Model : EG40R EG70R EG70R-3 ZX70 ZX80LCK ZX80SB-HCME

Parts No. : 4445648

Parts name : Swing device

Warranty : 6 Months

Package : standard export carton

Contact Now



  • 4445648 ZX70 Swing Device Gearbox For HITACHI Excavator Swing Reduction Gear






  • Spec Sheet
Product name Swing reduction gearbox
Part number 4445648
Model ZX70 ZX80 EG40 EG70
Category group Excavator Reduction Parts
MOQ 1 PCS
Warranty 6 months
Payment term T/T, Western Union, PAYPAL
Delivery time 1-3 days after receiving the payment
Packing As request or standard packing
Means of transport By sea/air, DHL FEDEX UPS TNT EMS




  • Application

EG40R EG40R-C EG70R EG70R-3 ZX70 ZX70-HHE ZX80LCK ZX80SB-HCME Hitachi

​





  • More swing drive parts for HITACHI machines
4486217 SWING;CIRCLE
EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...

4397256 SWING DEVICE
EG40R, EX60-5(LC), EX60BUN-5, EX70LCK-5

4421247 SWING-DEVICE
EG40R, EX60-5(LC), EX60BUN-5

4470057 SWING-DEVICE
ZX70, ZX75UR, ZX75UR-3, ZX75URT, ZX75US-A, ZX75UST, ZX80LCK, ZX80SB-HCME, ZX85US-HCME

9194506 SWING DEVICE
ZX160

9186784 SWING DEVICE ASS'Y
ZX330-3G, ZX330-HHE, ZX360H-3G, ZX360LC-HHE

(9301482) SWING DEVICE (FRONT)
EX1200-6

9236034 SWING-DEVICE
ZX40U-2, ZX40U-3, ZX40U-3U, ZX48U-3, ZX48U-3F, ZX50U-2, ZX50U-3, ZX50U-3F, ZX52U-3, ZX52U-3F

9166468 SWING BEARING
EX300-5, EX300-5HHE, EX300LC-5M, EX300LCLL-5, EX300LCLL-5M, EX345USR(LC), EX350H-5, EX350H-5HHE, EX350K-5, EX370-5M, EX370HD-5, EX370LL-5M, EX385USR, ZX330, ZX330-3G, ZX330-HHE, ZX330LC-3G, ZX350H, ZX...

9162693 SWING DEVICE
EX225USR(LC), EX225USRK(LC), RX2300

YB60000061 SWING;CIRCLE
ZX870-5G, ZX870H-5G, ZX870LC-5B, ZX870LC-5G, ZX870LCH-5G, ZX870LCR-5G

4486217 SWING;CIRCLE
EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...

9293649 SWING-DEVICE
ZX870-5G, ZX870H-5G, ZX870LC-5B, ZX870LC-5G, ZX870LCH-5G, ZX870LCR-5G

9195215 SWING DEVICE ASS'Y
ZX330-3G, ZX330-HHE, ZX360H-3G, ZX360LC-HHE

9136483 SWING LEVER
CX500, CX550

9118328 SWING DEVICE
EX60-2, EX60-3, EX60LCK-3, EX60T-2, EX60WD-2, EX75UR, EX75UR-3, EX75URLC-3

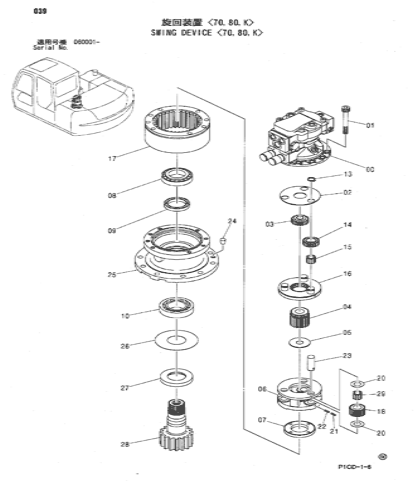

  • Parts List Diagram
Pos. Part No Qty Parts name Comments
  4445648 [1] SWING-DEVICE
0 4429255 [1] MOTOR;OIL
1 4470166 [8] BOLT;SOCKET
2 4468029 [1] PLATE
3 4468030 [1] GEAR;SUN
4 4468031 [1] GEAR;SUN
5 4397238 [1] PLATE;THRUST
6 4468032 [1] CARRIER
7 4397240 [1] NUT
8 4397241 [1] BRG.;ROL.
9 4395197 [1] SEAL;OIL
10 4468033 [1] BRG.;ROL.
13 942517 [3] RING;RETAINING
14 4468034 [3] GEAR;PLANETARY
15 4397245 [3] BRG.;NEEDLE
16 4468035 [1] CARRIER
17 4468036 [1] GEAR;RING
18 4468037 [3] GEAR;PLANETARY
20 4468038 [6] PLATE;THRUST
21 4134502 [3] PIN;SPRING
22 4395205 [3] PIN;SPRING
23 4468039 [3] PIN
24 420802 [1] CORK
25 4468040 [1] HOUSING
26 4468041 [1] PLATE;THRUST
27 4468042 [1] SPACER
28 4468043 [1] SHAFT;PROP.
29 4468044 [3] BRG.;NEEDLE

4445648 ZX70 Swing Device Gearbox For HITACHI Excavator Swing Reduction Gear



  • Description



The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.


Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.





  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB




  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
