| Parts No. | XJBN-00067 XJBN00067 XJBN-01035 XJBN-01036 |
| Item Name | hydraulic pump cylinder block & valve plate |
| Model No. | R210 R215 R220 R235 R250 R260 |
| MOQ | 1 piece |
| Lead time | 2-5 days |
| Design | made in china |
| Port | guangzhou |
| Warranty | 6 months |
- Compatible HYUNDAI models
7 SERIES WHEEL EXCAVATOR R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R250LC9 R250LC9A R260LC9S RB220LC9S RB260LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R210W-9 R210W9A R210W9AMH R210W9MH R210W9S
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL HX235L HX260L
F-SERIES WHEEL EXCAVATOR HW210 Hyundai

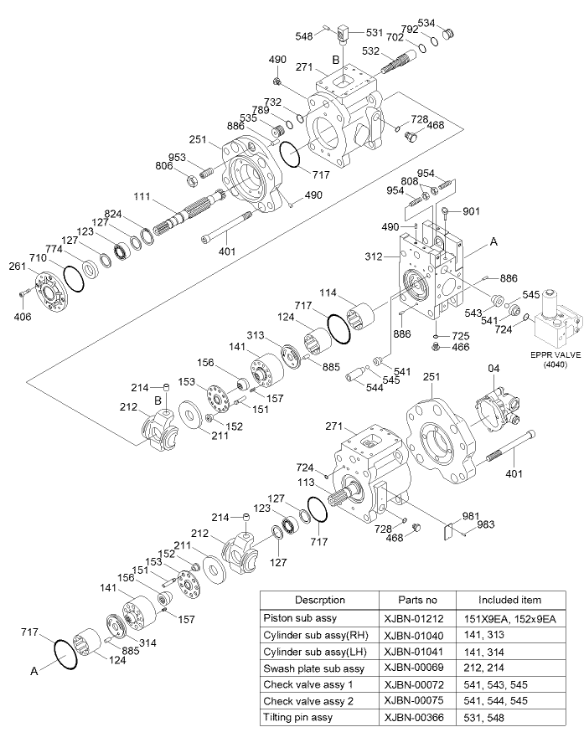

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31Q6-10050 | [1] | MAIN PUMP | *-1,*-2,*-3,*-4 |
| *-1. | @ | [1] | MAIN PUMP UNIT | |
| 111 | XJBN-00077 | [1] | SHAFT-DRIVE,FR | |
| 113 | XJBN-00078 | [1] | SHAFT-DRIVE,RR | |
| 114 | XJBN-00351 | [1] | COUPLING-SPLINE | |
| 123 | XJBN-00950 | [2] | BEARING-ROLLER | |
| 124 | XJBN-00786 | [2] | BEARING-NEEDLE | |
| 127 | XJBN-00081 | [4] | SPACER-BEARING | |
| NS141. | XJBN-00067 | [2] | BLOCK-CYLINDER | |
| NS151. | XJBN-01032 | [18] | PISTON | |
| NS152. | XJBN-01214 | [18] | SHOE | |
| 153 | XJBN-00945 | [2] | PLATE-SET | |
| 156 | XJBN-00083 | [2] | BUSHING-SPHERICAL | |
| 157 | XJBN-00084 | [18] | SPRING-CYLINDER | |
| 211 | XJBN-00085 | [2] | PLATE-SHOE | |
| NS212. | XJBN-00070 | [2] | PLATE-SWASH | |
| NS214. | XJBN-00071 | [2] | BUSHING-TILTING | |
| 251 | XJBN-00086 | [2] | SUPPORT | |
| 261 | XJBN-00087 | [1] | COVER(F)-SEAL | |
| 271 | XJBN-01034 | [2] | CASING-PUMP | |
| 312 | XJBN-00089 | [1] | BLOCK-VALVE | |
| NS313. | XJBN-01035 | [1] | PLATE-VALVE(R) | |
| NS314. | XJBN-01036 | [1] | PLATE-VALVE(L) | |
| 401 | XJBN-00090 | [8] | SCREW-HEX SOC HD | |
| 406 | XJBN-00355 | [4] | SCREW-HEX SOC HD | |
| 466 | XJBN-00030 | [2] | PLUG | |
| 468 | XJBN-00031 | [4] | PLUG | |
| 490 | XJBN-00032 | [18] | PLUG | |
| NS531. | XJBN-00358 | [2] | PIN-TILTING | |
| 532 | XJBN-00955 | [2] | PISTON-SERVO | |
| 534 | XJBN-01037 | [2] | STOPPER(L) | |
| 535 | XJBN-00093 | [2] | STOPPER(S) | |
| NS541. | XJBN-00859 | [4] | SEAT | |
| NS543. | XJBN-00860 | [2] | STOPPER 1 | |
| NS544. | XJBN-00861 | [2] | STOPPER 2 | |
| NS545. | XJBN-00038 | [4] | BALL-STEEL | |
| NS548. | XJBN-00360 | [2] | PIN-FEED BACK | |
| 702 | XJBN-00918 | [2] | O-RING | |
| 710 | XJBN-00095 | [1] | O-RING | |
| 717 | XJBN-00096 | [4] | O-RING | |
| 724 | XJBN-00361 | [16] | O-RING | |
| 725 | XJBN-00045 | [4] | O-RING | |
| 728 | XJBN-00046 | [4] | O-RING | |
| 732 | XJBN-00912 | [2] | O-RING | |
| 774 | XJBN-01579 | [1] | OIL SEAL | |
| 789 | XJBN-00099 | [2] | RING-BACK UP | |
| 792 | XJBN-00100 | [2] | RING-BACK UP | |
| 806 | XJBN-00101 | [2] | NUT-HEX | |
| 808 | XJBN-00364 | [2] | NUT-HEX | |
| 824 | XJBN-00102 | [2] | RING-SNAP | |
| 885 | XJBN-00103 | [2] | PIN-VALVE PLATE | |
| 886 | XJBN-00054 | [4] | PIN-SPRING | |
| 901 | XJBN-00104 | [2] | BOLT-EYE | |
| 953 | XJBN-00105 | [2] | SCREW-SET | |
| 954 | XJBN-00106 | [2] | SCREW-SET | |
| 981 | XJBN-00156 | [1] | NAME PLATE | |
| 983 | XJBN-00455 | [2] | PIN | |
| *-2. | @ | [2] | REGULATOR ASSY | SEE 4020 |
| *-3. | @ | [1] | PUMP-GEAR | SEE 4030 |
| *-4. | @ | [1] | EPPR VALVE | SEE 4040 |
| S. | XJBN-01212 | [2] | PISTON SUB ASSY | SEE ILLUST |
| S. | XJBN-01040 | [1] | CYLINDER ASSY-RH | SEE ILLUST |
| S. | XJBN-01041 | [1] | CYLINDER ASSY-LH | SEE ILLUST |
| S. | XJBN-00069 | [2] | SWASH PLATE SUB ASSY | SEE ILLUST |
| S. | XJBN-00072 | [2] | CHECK VALVE ASSY 1 | SEE ILLUST |
| S. | XJBN-00075 | [2] | CHECK VALVE ASSY 2 | SEE ILLUST |
| S. | XJBN-00366 | [2] | TILTING PIN ASSY | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS | |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
Packaging :Normally we use the standard exporting packaging , we also can according to clients' request
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
1. Professional technical team, providing good quality products and excellent After-sales service.
2. 100% quality assurance, develop and manufacture follow original ones;
3. All products have warranty, Monitor and Controller have 1 Year Warranty.
4. Excavator spare parts in full-scale are available;
5. Real manufacturer, many companies including small-scale factory purchased parts from us.
6. Small order allowed;
7. Original packing, neutral packing or customized packing;
8. Positive customer feedback from abroad market.
Product Tags:
|
|

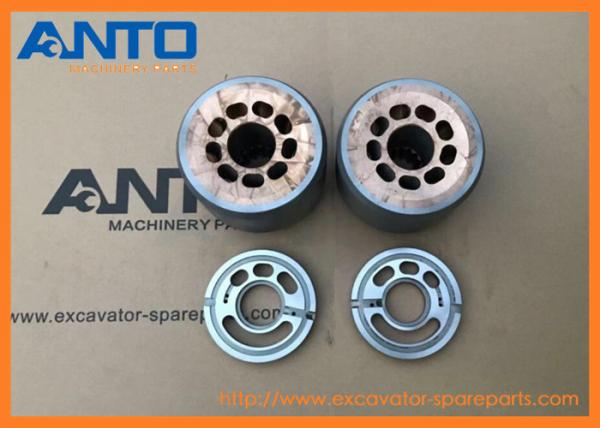

XJBN-00067 XJBN00067 XJBN-01035 XJBN-01036 Cylinder Block Valve Plate For HYUNDAI Excavator Pump Images
|
