EC290B EC290C EC300D EC300E EC330B EC340D EC350D EC700C EC700CHR ECR305C FC3329C PL3005D PL3005E Vo-lvo.Heavy
- More planet carrier for Vo-lvo machines
VOE14547274 Planet carrier
EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E
VOE14609496 Planet Carrier
EC700B, EC700BHR, EC700C
VOE14547267 Planet carrier
EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E
VOE14566418 Planet carrier
EC240C, EC290B, EC290C, EC300D, EC300E, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924C, FC3329C, PL3005D
VOE14566411 Planet carrier
EC240C, EC290B, EC290C, EC330B, EC330C, EC350E, EC360B, EC360C, EC360CHR, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924C, FC3329C, PL3005D
VOE14619959 Planet carrier
EC700C, EC700CHR
VOE14566426 Planet carrier
EC290C, EC330B, EC330C, EC360B, EC360C, EC360CHR, EC380DHR, ECR305C, FC3329C, PL3005D
VOE14620663 Planet carrier
EC700C, EC700CHR
VOE14620657 Planet carrier
EC700C, EC700CHR
VOE14620656 Planet carrier
EC700C, EC700CHR, EC750D, EC750E
VOE14620662 Planet carrier
EC700C, EC700CHR, EC750D, EC750E
VOE14620649 Planet carrier
EC700C, EC700CHR
VOE14547267 Planet carrier
EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E
VOE14609496 Planet Carrier
EC700B, EC700BHR, EC700C
VOE14566218 Planet carrier
EC240B, EC240C, EC250D, EC250E, FC2924C
VOE14566217 Planet carrier
EC240B, EC240C, EC250D, EC250E, FC2924C
VOE14547274 Planet carrier
EC290B, EC290C, EC300D, EC300E, EC330B, EC340D, EC350D, EC700C, EC700CHR, ECR305C, FC3329C, PL3005D, PL3005E
VOE23927 Planet shaft
A40D, T450D
VOE14619959 Planet carrier
EC700C, EC700CHR
VOE14566411 Planet carrier
EC240C, EC290B, EC290C, EC330B, EC330C, EC350E, EC360B, EC360C, EC360CHR, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924C, FC3329C, PL3005D
VOE14566210 Vo-lvo.Heavy
VOE14566210 Planet carrier
EC240B, EC240C, EC250D, EC250E, FC2924C
VOE11103116 Planet carrier
A25D, A25E, A25F, A25F/G, A25G
VOE14566211 Planet carrier
EC240B, EC240C, EC250D, EC250E, FC2924C
VOE14566418 Planet carrier
EC240C, EC290B, EC290C, EC300D, EC300E, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, ECR305C, FC2924C, FC3329C, PL3005D

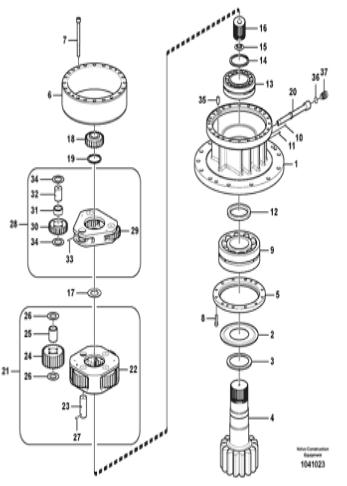

Pos. Part No Qty Parts name Comments
VOE14640501 [1] Swing gearbox S/N -231115, -270378, -280656
VOE14724049 [1] Swing gearbox S/N 231116-, 270379-, 280657-
1. VOE14547262 [1] Case
2. VOE14547260 [1] Ring
3. VOE14547259 [1] Collar
4. VOE14640502 [1] Shaft
5. VOE14547263 [1] Cover
6. VOE14547266 [1] Gear
7. VOE984363 [20] Hex. socket screw
8. VOE944088 [12] Screw
9. VOE14547261 [1] Bearing
10. SA9415-43012 [1] Plug
11. VOE914167 [1] Lubriing nipple
12. VOE14566830 [1] Seal
13. VOE14547265 [1] Bearing
14. SA9541-01110 [1] Retaining ring
15. SA7118-30380 [1] Thrust ring
16. VOE14547272 [1] Gear
17. VOE14547278 [1] Thrust washer
18. VOE14547279 [1] Gear
19. VOE14880960 [1] Retaining ring
20. VOE14547281 [1] Pipe
21. VOE14547280 [1] Planet carrier
22. VOE14547267 [1] Planet carrier
23. VOE14547271 [4] Pin
24. VOE14547268 [4] Gear
25. VOE14547269 [4] Bushing
26. VOE14556491 [8] Washer
27. SA9325-06012 [4] Spring pin
28. VOE14547273 [1] Planet carrier
29. VOE14547274 [1] Planet carrier
30. VOE14547275 [3] Gear
31. SA7117-30230 [3] Needle bearing
32. VOE14547277 [3] Pin
33. SA9325-06012 [3] Spring pin
34. VOE14547276 [6] Washer
35. VOE950677 [4] Pin
36. VOE949329 [1] Gasket
37. VOE14722461 [1] Draining valve
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
