- 320-0680 3200680 Fuel Injector Excavator Spare Parts For C4.4 C6.6
| Name | Fuel Injector |
| Parts No | 320-0680 3200680 |
| Machine Model | M313D M315D M316D M317D2 M318D M318D MH M322D |
| Category | Pump Gp-Fuel Injection |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
ASPHALT PAVER AP-555E BG500E
BACKHOE LOADER 430E 450E
GENERATOR SET C4.4
INDUSTRIAL ENGINE C6.6
LOAD HAUL DUMP R1300G II
PNEUMATIC COMPACTOR CW-34
VIBRATORY COMPACTOR CB-54 CB-54B CB-64 CS-54 CS-54B
WHEELED EXCAVATOR M313D M315D M316D M317D2 M318D M318D MH M322D M322D MH Cater.pillar.
- More other injector parts fit for C A T machine
| 3213600 INJECTOR GP-FUEL |
| 2470C, 553C, 559, 924H, 924HZ, 953D, AP-600D, AP-655D, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS-64, CS-68B, CS-74, CS-74B, CS-78B, D6K, D6K LGP, D6K XL, PL61, R1300G II |
| |
| 3200690 INJECTOR GP-FUEL |
| 120M, 12M, 928H, 928HZ, 938H, 963D, C6.6, D5R LGP, D6N, IT38H |
| |
| 3200677 INJECTOR GP-FUEL |
| 320D GC, 320D L, 323D L, 420E, 914G, C4.4, C6.6, CP-44, CS-44, D3K XL, D4K XL, D5K LGP, IT14G, IT14G2 |
| |
| 2923790 INJECTOR GP-FUEL |
| 120M, 928HZ, 938H, C6.6, IT38H |
| |
| 3069377 INJECTOR GP-FUEL |
| 420E, AP-600D, BG600D, BG655D, C4.4, C6.6 |
| |
| 2923780 INJECTOR GP-FUEL |
| 924H, AP-600D, AP-655D, BG600D, BG655D, C4.4, C6.6, CP-56, CP-64, CP-76, CS-56B, CS-64, CS-74, M315D, M316D, M318D, M318D MH, M322D, M322D MH, R1300G II, SPF343C |
| |
| 3210990 INJECTOR GP-FUEL |
| 613G, AP1000E, AP1055E, C6.6 |
| |
| 3069390 INJECTOR GP-FUEL |
| 120M, 12M, 928HZ, 938H, 963D, C6.6, IT38H |
| |
| 3069380 INJECTOR GP-FUEL |
| 924H, 924HZ, AP-600D, AP-655D, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-64, CS-74, D6K, D6K LGP, M313D, M315D 2, M316D, M318D, M318D MH, M322D, M322D MH, R1300G II |
| |
| 2820480 INJECTOR GP-FUEL |
| 953D, AP-600D, AP-655D, C4.4, C6.6, CB-54B, CP-56, CP-64, CS-54B, CS-64, CS-74, CW-34, D6K, D6K LGP, M316D, M318D, M318D MH |
| |
| 3200670 INJECTOR GP-FUEL |
| C6.6 |
| |
| 3211080 INJECTOR GP-FUEL |
| C6.6 |

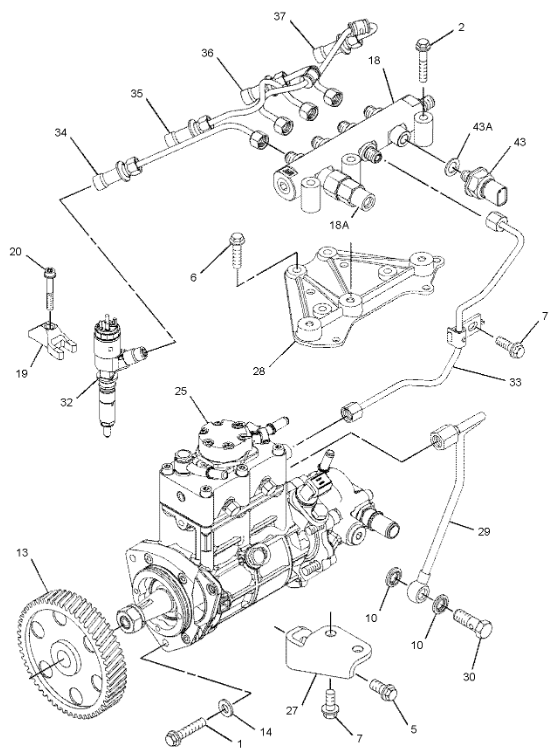

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6I-0260 M | [3] | BOLT (M8X1.25X25-MM) | |
| 2 | 6I-0455 M | [3] | BOLT (M8X1.25X55-MM) | |
| 3 | 6I-0572 M | [4] | BOLT (M8X1.25X20-MM) | |
| 4 | 7W-2632 | [1] | WASHER (8.5X16.8X1.6-MM THK) | |
| 5 | 100-4830 M | [1] | BOLT (M10X1.5X20-MM) | |
| 6 | 101-3895 M | [4] | BOLT (M8X1.25X35-MM) | |
| 7 | 124-3815 M | [4] | BOLT (M8X1.25X16-MM) | |
| 8 | 141-8584 M | [4] | BOLT (M8X1.25X50-MM) | |
| 9 | 300-6714 | [8] | MOUNT | |
| 10 | 160-0162 | [2] | WASHER | |
| 11 | 217-0099 | [5] | SPACER (8.2X25X2-MM THK) | |
| 13 | 230-8989 | [1] | GEAR-FUEL PUMP (68-TEETH) | |
| 14 | 232-3149 C | [3] | WASHER (8.35X16.85X1.55-MM THK) | |
| 16 | 268-6678 | [1] | BRACKET AS | |
| 16A. | 260-3939 M | [1] | SCREW-HEX HEAD (M6X1X25-MM) | |
| 17 | 268-6677 | [1] | BRACKET AS | |
| 17A. | 260-3939 M | [1] | SCREW-HEX HEAD (M6X1X25-MM) | |
| 18 | 318-2394 | [1] | RAIL AS-FUEL | |
| 18A. | 305-5291 | [1] | VALVE AS-RELIEF | |
| 19 | 278-5168 | [4] | CLAMP-INJECTOR | |
| 20 | 278-5170 | [4] | BOLT | |
| 23 | 278-5203 | [4] | SPACER | |
| 25 | 324-0532 CY | [1] | PUMP GP-FUEL INJECTION | |
| 27 | 298-4535 | [1] | BRACKET-SUPPORT | |
| 28 | 337-3573 | [1] | BRACKET | |
| 29 | 298-4542 | [1] | TUBE AS | |
| 30 | 298-4543 | [1] | BOLT | |
| 31 | 317-3144 | [1] | BRACKET | |
| 32 | 320-0680 Y | [4] | INJECTOR GP-FUEL | |
| 33 | 337-3574 | [1] | TUBE | |
| 34 | 322-3745 | [1] | TUBE (CYL NO. 1) | |
| 35 | 322-3746 | [1] | TUBE (CYL NO. 2) | |
| 36 | 333-4732 | [1] | LINE-FUEL INJECTION (CYL NO. 3) | |
| 37 | 333-4733 | [1] | LINE-FUEL INJECTION (CYL NO. 4) | |
| 38 | 278-5225 | [1] | KIT-SENSOR (ENGINE OIL PRESSURE) | |
| 38A. | 199-9267 | [1] | SEAL-O-RING | |
| 39 | 311-3858 | [1] | KIT-SENSOR (ENGINE SPEED) | |
| 39A. | 274-1639 | [1] | SEAL | |
| 40 | 278-5272 | [1] | KIT-SENSOR (AIR TEMPERATURE) | |
| 40A. | 278-5226 | [1] | SEAL-O-RING | |
| 41 | 278-5273 | [1] | KIT-SENSOR (AIR PRESSURE) | |
| 41A. | 199-9252 | [1] | SEAL-O-RING | |
| 42 | 278-5307 | [1] | KIT-SENSOR (COOLANT TEMPERATURE) | |
| 42A. | 199-9267 | [1] | SEAL-O-RING | |
| 43 | 311-6342 | [1] | SENSOR AS-PRESSURE (FUEL RAIL PRESSURE) | |
| 43A. | 309-8006 | [1] | WASHER | |
| | | | | |
| | 278-4138 F | [5] | KIT-FUEL LINE PROTECTION | |
| | C | | CHANGE FROM PREVIOUS TYPE | |
| | F | | NOT SHOWN | |
| | M | | METRIC PART | |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE | |
| | Y | | SEPARATE ILLUSTRATION | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
Product Tags:
|
|
320-0680 3200680 Fuel Injector Excavator Spare Parts For C4.4 C6.6 Images
|
