• VOE14531300 14531300 Main Hydraulic Pump Excavator Spare Parts For EC210C EC235C





• Specification

Name	Main Hydraulic Pump
Parts No	14531300
Machine Model	EC210C EC235C FC2421C ECR235C FC2121C
Category	Pump Installation
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing





• Compatible models





• More other pump parts fit for V O L V O machine

VOE14509275 Pump

EC140B, EC140C, EC160, EC160B, EC160C, EC180B, EC180C, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC235C, EC235D, EC240B, EC290B, EC330B, EC360B, EC460B, ECR145C, ECR235C, EW140, EW140B, EW140C, ...

VOE11706595 Pump

A25F, A25F/G, A25G, A30F, A30F/G, A30G, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS, A60H, EC140B, EC140C, EC160, EC160B, EC160C, EC180B, EC180C, EC20...

VOE14554443 Pump kit

EC210C, EC220D, EC235C, EC235D, ECR235C, ECR235D, ECR235E, FC2121C, FC2421C

VOE20798675 Pump Unit

EC140C, EC160C, EC180C, EC210C, EC235C, ECR145C, ECR235C, EW160C, EW180C, FC2121C, FC2421C, L60F, L70F, L90F

VOE14554444 Pump kit

EC210C, EC235C, ECR235C, FC2121C, FC2421C

VOE11038156 Pump unit

A30C, A35D, A40D, T450D

VOE14595621 Pump

EC210B

RM13792957 Pump

PF161, PF2181, PF3172/PF3200, PF4410

VOE15194011 Pump unit

L120GZ, L60G, L60GZ, L60H, L70G, L70H, L90G, L90GZ, L90H

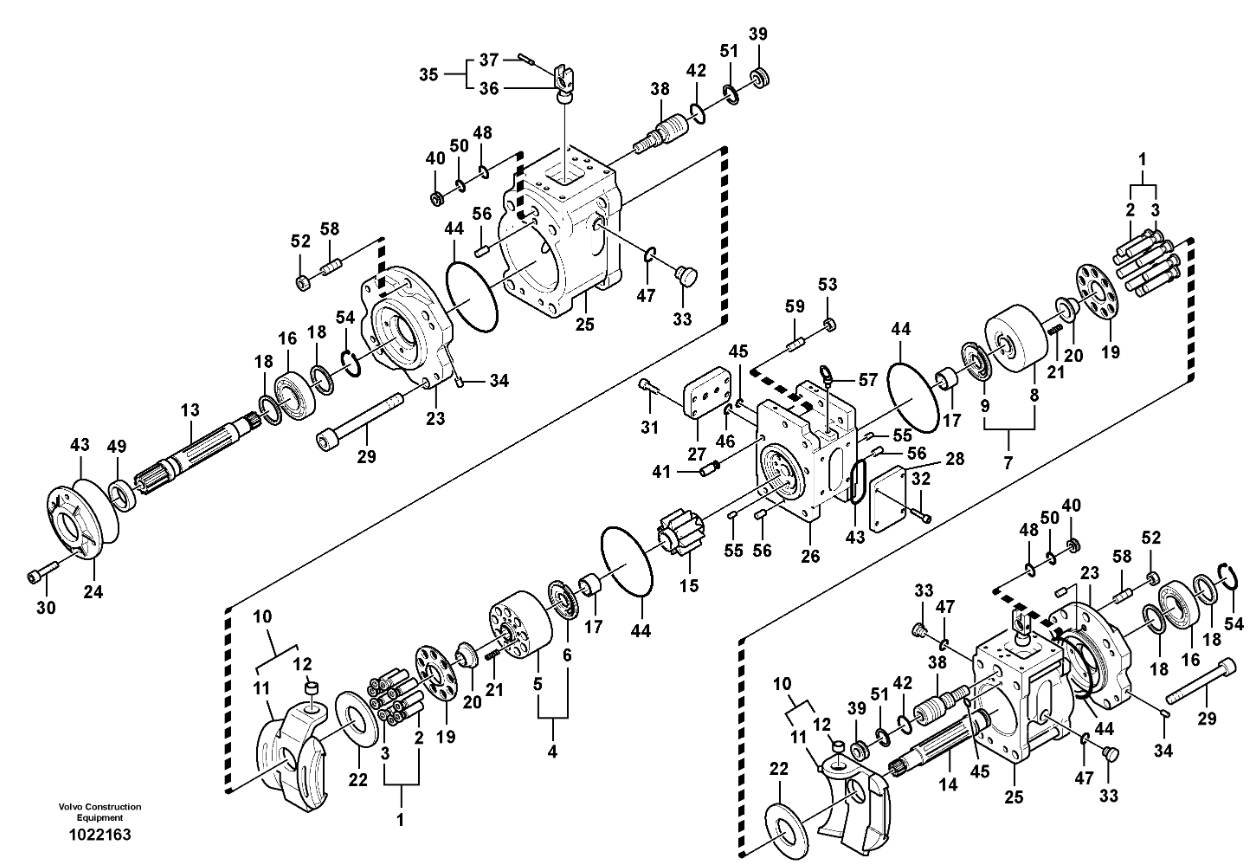

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	VOE14531300	[1]	Pump
1	VOE14600771	[2]	Piston
2	VOE14500003	[9]	Piston
3	VOE14500002	[9]	Seat
4	VOE14550188	[1]	Cylinder
5		[1]	Block
6	VOE14550181	[1]	Plate
7	VOE14550189	[1]	Cylinder
8		[1]	Block
9	VOE14550182	[1]	Plate
10	SA8230-09800	[2]	Plate
11		[1]	Plate
12	VOE14500012	[1]	Bushing
13	SA8230-09100	[1]	Main shaft
14	SA8230-09070	[1]	Shaft
15	SA8230-08840	[1]	Gear
16	VOE14535425	[2]	Bearing
17	VOE14535447	[2]	Bearing
18	SA8230-14530	[4]	Spacer
19	SA8230-09370	[2]	Plate
20	VOE14535448	[2]	Bushing
21	SA8230-09710	[18]	Spring
22	SA8230-21920	[2]	Plate
23	SA8230-08940	[2]	Support
24	SA8230-09350	[1]	Flange connection
25	VOE14550179	[2]	Casing
26	VOE14550180	[1]	Block
27	VOE14550183	[1]	Cover
28	VOE14550184	[1]	Cover
29	SA8230-09690	[8]	Hex. socket screw
30	VOE967630	[4]	Hex. socket screw
31	SA8230-25860	[3]	Bolt
32	VOE11705999	[4]	Allen Hd Screw
33	VOE14550185	[4]	Plug
34	VOE14560637	[32]	Plug
35	SA8230-09790	[2]	Pin
36	SA8230-09320	[1]	Pin
37		[1]	Pin
38	SA8230-09250	[2]	Piston
39	SA8230-09640	[2]	Plug
40	SA8230-09650	[2]	Plate
41	VOE14550186	[2]	Spacer
42	VOE14533615	[2]	O-ring
43	VOE14535450	[2]	O-ring
44	VOE14535451	[4]	O-ring
45	VOE14533604	[18]	O-ring
46	VOE14533606	[4]	O-ring
47	VOE14550187	[4]	O-ring
48	VOE14533609	[2]	O-ring
49	VOE14535452	[1]	Seal
50	VOE14625246	[2]	Ring
51	SA9566-20350	[2]	Back-up ring
52	SA8230-25620	[2]	Nut
53	VOE979022	[2]	Hexagon nut
54	VOE13914468	[2]	Snap ring
55	SA8230-26430	[2]	Plate
56	SA7223-00660	[4]	Spring pin
57	VOE14623509	[2]	Eye bolt
58	SA8230-26780	[2]	Bolt
59	SA8230-09700	[2]	Bolt
100	VOE14554443	[1]	Pump kit







• We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







• Advantage



1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service







• Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
