| Application | KOMATSU excavator engine parts |
| Name | Turbocharger |
| Parts No | 6745-81-8230 6745818230 |
| Model | PC300 PC300HD PC350 PC350HD |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
Excavators PC300 PC300HD PC350 PC350HD Komatsu
- More turbocharger parts supplied to KOMATSU machine
| 6162-84-8400 TURBOCHARGER ASS'Y,(FOR NO.4,5,6 CYLINDER) |
| SA6D170 |
| |
| 6505-55-5090 TURBOCHARGER ASS'Y,(SEE FIG.A1530-B4D6) |
| SAA6D140E |
| |
| 6162-84-8401 TURBOCHARGER ASS'Y,(FOR NO.4,5,6 CYLINDER) |
| SA6D170 |
| |
| 6754-81-8170 TURBOCHARGER KIT |
| PW180, PW200, PW220, SAA6D107E |
| |
| 6207-81-8110 TURBOCHARGER ASS'Y,(SEE FIG.0155A) |
| S6D95L |
| |
| CU3804745 TURBOCHARGER ASS'Y,KIT |
| QSK19 |
| |
| 6505-67-5120 TURBOCHARGER ASS'Y,(KTR110L-F85PW) |
| SAA12V140E |
| |
| 6271-81-8550 TURBOCHARGER |
| SAA4D95LE, WA150PZ |
| |
| 6505-72-5010 TURBOCHARGER ASS'Y,(KTR110M-D32AW) |
| SAA6D140E |
| |
| 6502-52-5010 TURBOCHARGER,(KTR130E-33ACW) |
| SAA6D170E |
| |
| 6208-81-8100 TURBOCHARGER ASS'Y |
| SAA4D95LE |
| |
| 6502-51-5030 Turbocharger Assembly, (KTR130E-332AW) |
| SAA6D170E |
| 6162-84-8400 TURBOCHARGER ASS'Y,(FOR NO.4,5,7 CYLINDER) |
| SA6D171 |
| |
| 6505-55-5090 TURBOCHARGER ASS'Y,(SEE FIG.A1530-B4D7) |
| SAA6D141E |
| |
| 6162-84-8401 TURBOCHARGER ASS'Y,(FOR NO.4,5,7 CYLINDER) |
| SA6D171 |
| |
| 6754-81-8171 TURBOCHARGER KIT |
| PW180, PW200, PW220, SAA6D108E |

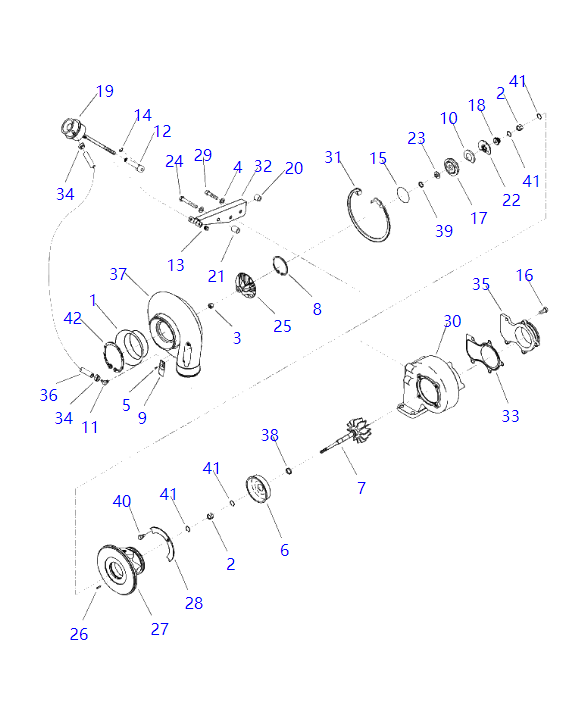

| Pos. | Part No | Qty | Parts name | Comments |
| | 6745-81-8230 | [1] | TURBOCHARGER Komatsu | 0.000 kg. |
| | |$0. |
| | NSS | [1] | TURBOCHARGER Komatsu China | |
| | |$1. |
| 2 | 6736-81-8370 | [2] | BEARING, TURBOCHARGER Komatsu | 0.01 kg. |
| | |
| 3 | 6731-82-8210 | [1] | NUT, LOCK Komatsu China | |
| | analogs:["CU3590306", "1240492H1", "6731818160", "6736818250"] |
| 4 | 6733-81-8650 | [3] | WASHER, PLAIN Komatsu China | |
| | |
| 5 | 6736-81-8480 | [2] | BOLT Komatsu | 0.000 kg. |
| | |
| 6 | 6736-81-8430 | [1] | SHIELD, TURBOCHARGER HEAT Komatsu China | |
| | analogs:["1240496H1"] |
| 8 | 6733-81-8360 | [1] | RING, RETAINING Komatsu China | |
| | |
| 13 | 6743-82-8610 | [2] | NUT, HEXAGON FLANGE Komatsu China | |
| | |
| 14 | 6733-81-8370 | [1] | RING, RETAINING Komatsu China | |
| | |
| 15 | 6733-81-8460 | [1] | SEAL, O RING Komatsu China | |
| | |
| 16 | 6743-82-8130 | [5] | BOLT (M8-1.25x20) Komatsu China | |
| | |
| 20 | 6733-81-6850 | [3] | SPACER, MOUNTING Komatsu China | |
| | |
| 21 | 6735-81-6810 | [1] | SPACER, MOUNTING Komatsu China | |
| | |
| 22 | 6735-82-8220 | [1] | BEARING, TURBOCHARGER THRUST Komatsu | 0.25 kg. |
| | |
| 23 | 6735-81-8620 | [1] | COLLAR, THRUST Komatsu China | |
| | |
| 24 | 6742-01-5569 | [1] | BOLT Komatsu China | |
| | |
| 26 | 6733-81-8480 | [1] | PIN, ROLL Komatsu China | |
| | |
| 29 | 6735-81-8370 | [2] | BOLT Komatsu China | |
| | |
| 31 | 6735-81-8310 | [1] | RING, RETAINING Komatsu China | |
| | |
| 32 | 6735-81-8490 | [1] | BRACKET, ACTUATOR Komatsu China | |
| | analogs:["CU3533328"] |
| 33 | 6742-01-5565 | [1] | GASKET, ADAPTER Komatsu China | |
| | |
| 34 | 6742-01-5564 | [2] | CLAMP, HOSE Komatsu China | |
| | |
| 35 | 1317 839 H1 | [1] | CONNECTION, ADAPTER Komatsu China | |
| | |
| 36 | 6742-01-5566 | [1] | HOSE, PLAIN Komatsu China | |
| | |
| 38 | 6736-81-8440 | [1] | SEAL, SPLIT RING Komatsu | 0.000 kg. |
| | analogs:["1246479H1"] |
| 39 | 6736-81-8320 | [1] | SEAL, SPLIT RING Komatsu China | |
| | analogs:["1246480H1"] |
| 40 | 6736-81-8380 | [6] | BOLT (M8-1.25x12) Komatsu China | |
| | analogs:["1246481H1"] |
| 41 | 6736-81-8360 | [4] | RING, RETAINING Komatsu China | |
| | analogs:["1240510H1"] |
| 42 | 6743-82-8140 | [1] | RING, RETAINING Komatsu China | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
