• K9007406 Piston ASS'Y DOOSAN Excavator Travel Motor Parts Fit For DX230LC DX235LCR





• Specification

Name	Piston ASS'Y
Parts No	K9007406
Machine Model	DX210 DX220A DX225LCA DX225LC TXC225LC-2 DX230LC
Category	Travel Motor
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing





• Compatible models

EXCAVATORS DX210 DX220A DX225LCA DX225LC TXC225LC-2 DX230LC Doosan





• More other piston parts fit for DOOSAN machine

K9006008 PISTON

Doosan

2.452-00002 PISTON

Doosan

2.452-00010 PISTON;POSITIONING

Doosan

2.115-00542 PISTON(WITH PISTON RINGS)

Doosan

1.409-00216 PISTON

Doosan

2.409-00224 PISTON ASS'Y

Doosan

K9004831 PISTON

Doosan

65.02503-8047 PISTON RING KIT

Doosan

409-00033 PISTON ASS'Y

Doosan

K9006208 PISTON;BRAKE

Doosan

K9006222 PISTON ASS'Y

Doosan

K9004453 PISTON;PARKING

Doosan

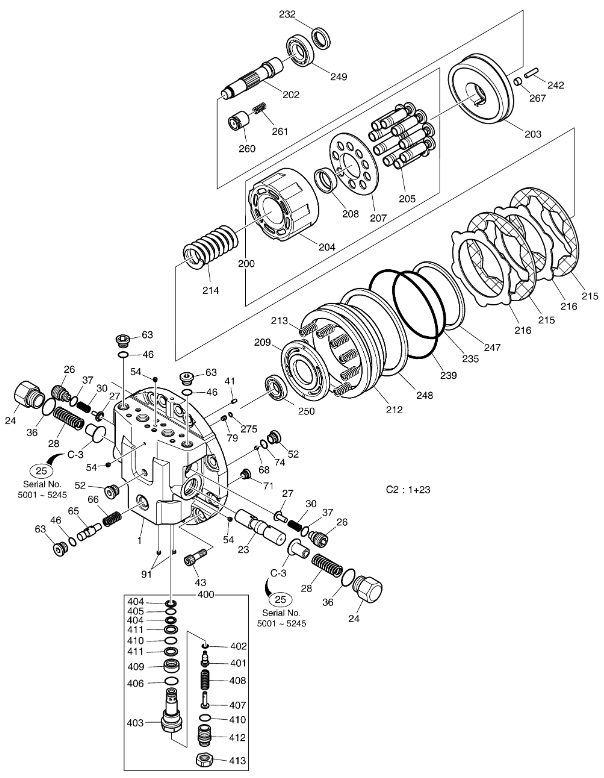

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
*.	K9008310	[1]	SEAL KIT;TRAVEL MOTOR
1	*NA00915	[1]	REAR FLANGE
200	400701-00004	[1]
200	K9007407	[1]	CYL BLOCK & PISTON KIT	400701-00004
202	K9007415A	[1]
203	K9007382	[1]	PLATE;SWASH
204	K9007397	[1]	BLOCK;CYLINDER
205	K9007406A	[1]
205	K9007406	[1]	PISTON ASS'Y
207	K9004447	[1]	PLATE;RETAINER
208	K9004448	[1]	BALL;THRUST
209	K9007398A	[1]
212	K9004453	[1]	PISTON;PARKING
213	1.131-00049A	[12]	SPRING
213	1.131-00049	[12]	SPRING
214	K9004449	[1]	SPRING
215	412-00013	[2]	PLATE,FRICTION
216	352-00014	[2]	PLATE,SEPARATION
23	410207-00163A	[1]
23	410207-00307	[1]	SPOOL,MAIN
23	410207-00163	[1]
232	K9007401	[1]	SEAL;OIL
235	S8001801	[1]	O-RING
239	S8002101	[1]	O-RING
24	1.181-00059	[2]	PLUG;FOR MAIN
242	1.123-00053	[4]	PIN,PARALLEL
247	S8061800	[1]	RING;BACK UP
248	S8062100	[1]	RING;BACK UP
249	K9007400	[1]	BEARING;BALL
25	110956-00071	[2]
250	1.109-00026	[1]	BEARING;BALL
26	1.181-00067	[2]	PLUG;CHECK
260	130602-00200	[1]
261	111601-00117	[1]
267	1.540-00006	[2]	PIVOT
27	1.420-00013	[2]	VALVE;CHECK
275	S8000081	[2]	O-RING
28	1.131-00058	[2]	SPRING;FOR MAIN
30	1.129-00006	[2]	SPRING;CHECK
36	S8000321	[2]	O-RING
37	S8002731	[2]	O-RING
400	410127-00058	[2]
400	410127-00058A	[2]		410127-00190
400	410127-00190	[2]	VALVE ASSY,RELIEF
401	*NA00890	[1]	. PLUNGER
402	1.180-00527	[1]	SEAL;PISTON
403	*NA00079	[1]	BODY
404	S8060161	[2]	RING;BACK-UP
405	S8000161	[3]	O-RING
406	S8010291	[1]	O-RING
407	*NA00926	[1]
408	*NA01182	[1]	. SPRING
409	*NA00796	[1]	PISTON
41	S5700891	[1]	PIN;PARALLEL
410	S8000221	[2]	O-RING
411	S8060221	[3]	RING;BACK UP
412	*NA00865	[1]	PLUG,ADJUST
413	*NA00628	[1]	NUT,LOCK
43	S2221471	[12]	BOLT,SOCKET
46	S8000181	[2]	O-RING
52	2181-1890D2	[4]	PLUG
54	181-00318	[5]	BOLT;SOCKER
63	2181-1890D4	[2]	PLUG
65	1.424-00041	[1]	SPOOL;2 SPEED
66	1.131-00001	[1]	SPRING	111601-00354
66	111601-00354	[1]	SPRING
68	S6250182	[2]	BALL
71	1.415-00005	[1]	ORIFICE
74	S8000111	[2]	O-RING
79	1.471-00001	[1]	FILTER
79	1.471-00001A	[1]	FILTER
91	2181-1116D1	[2]	PLUG
C.	K9007410	[1]	CONTROL PART ASS'Y	300609-00069
C.	300609-00069	[1]
C-1.	K9007408A	[1]		430215-00552
C-1.	430215-00552	[1]
C-2.	K9007409A	[1]
C-3.	110956-00060	[2]	STOPPER
