EXCAVATORS EC200D EC210D
- More other valve parts for Vo-lvo equipments
| VOE14524582 Valve |
| EC120D, EC140B, EC140C, EC140D, EC140E, EC160C, EC180C, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC235C, EC235D, EC240B, EC290B, EC290C, EC750D, EC750E, ECR145C, ECR145D, ECR145E, ECR235C, ECR3... |
| |
| VOE14633065 Valve |
| EC210B, EC240B, EC290B, EC330B, EC330C, EC340D, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC700B, EC700BHR, EC700C, EC700CHR, FC2121C, FC2421C, FC2924C, F... |
| |
| VOE14654637 Valve |
| EC170D, EC200D, EC210D |
| |
| VOE14673208 Valve |
| EC200D, EC210D |
| |
| VOE14684415 Valve |
| EC135B, EC140B, EC140C, EC140D, EC140E, EC240B, EC240C, EC250D, EC290B, EC290C, EC360B, EC700B, EC700C, ECR145C, ECR145D, ECR145E, EW145B, FC2924C, FC3329C, PL3005D |
| |
| VOE14701773 Valve |
| EC200D, EC210D, EC60C, EC60D |
| |
| VOE14636708 Valve |
| EC200D, EC210D |
| |
| VOE14701765 Valve |
| EC210D, PL3005E, PL4809E |

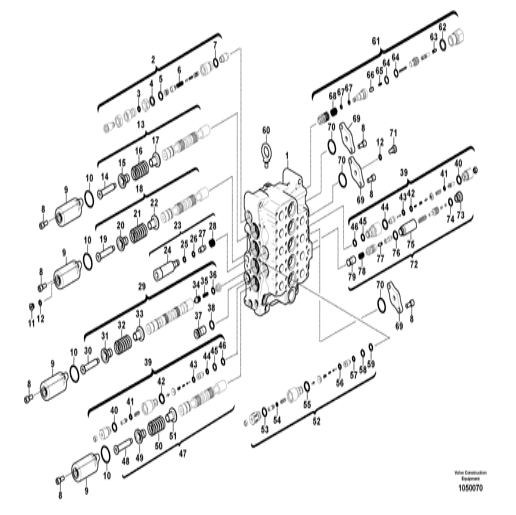

| Pos. | Part No | Qty | Parts name | Comments |
| | VOE14696847 | [1] | Control valve | |
| 1 | SA7271-11010 | [1] | Body | |
| 2 | VOE14513267 | [1] | Relief valve | |
| 3 | VOE983502 | [1] | O-ring | |
| 4 | SA7273-30530 | [1] | Ring | |
| 5 | VOE993322 | [1] | O-ring | |
| 6 | SA7273-30490 | [1] | Spring | |
| 7 | VOE983510 | [1] | O-ring | |
| 8 | SA9016-11005 | [16] | Hex. socket screw | |
| 9 | SA7273-10010 | [4] | Cap | |
| 10 | VOE990569 | [4] | O-ring | |
| 11 | SA7273-10751 | [1] | Cap | |
| 12 | VOE983502 | [2] | O-ring | |
| 13 | VOE14696848 | [1] | None | |
| 14 | SA7273-10390 | [1] | Retainer | |
| 15 | VOE14673448 | [1] | None | |
| 16 | VOE14670837 | [1] | Spring | |
| 17 | VOE14514228 | [1] | Guide | |
| 18 | VOE14676422 | [1] | Spool | |
| 19 | SA7273-10390 | [1] | Retainer | |
| 20 | VOE14673448 | [1] | None | |
| 21 | VOE14670837 | [1] | Spring | |
| 22 | VOE14514228 | [1] | Guide | |
| 23 | SA7270-11060 | [1] | Valve | |
| 24 | SA7273-10380 | [1] | Cap | |
| 25 | VOE14880815 | [1] | Back-up ring | |
| 26 | VOE983503 | [1] | O-ring | |
| 27 | SA7273-10140 | [1] | Valve | |
| 28 | SA7273-10550 | [1] | Spring | |
| 29 | VOE14526809 | [1] | Spool | |
| 30 | SA7273-10390 | [1] | Retainer | |
| 31 | VOE14673448 | [1] | None | |
| 32 | VOE14670837 | [1] | Spring | |
| 33 | VOE14514228 | [1] | Guide | |
| 34 | SA7273-10180 | [1] | Stay | |
| 35 | SA7273-10570 | [1] | Spring | |
| 36 | VOE983505 | [1] | O-ring | |
| 37 | SA7273-10340 | [1] | Cap | |
| 38 | VOE983510 | [1] | O-ring | |
| 39 | VOE14524582 | [2] | Valve | |
| 40 | VOE983543 | [1] | O-ring | |
| 41 | VOE983495 | [1] | O-ring | |
| 42 | VOE993323 | [1] | O-ring | |
| 43 | SA7273-30540 | [1] | Ring | |
| 44 | VOE983542 | [1] | O-ring | |
| 45 | VOE14880816 | [1] | Back-up ring | |
| 46 | VOE983507 | [1] | O-ring | |
| 47 | VOE14667556 | [1] | Spool | |
| 48 | SA7273-10390 | [1] | Retainer | |
| 49 | VOE14673448 | [1] | None | |
| 50 | VOE14670837 | [1] | Spring | |
| 51 | VOE14514228 | [1] | Guide | |
| 52 | VOE14645132 | [1] | Valve | |
| 53 | VOE983543 | [1] | O-ring | |
| 54 | VOE983495 | [1] | O-ring | |
| 55 | VOE993323 | [1] | O-ring | |
| 56 | SA7273-30540 | [1] | Ring | |
| 57 | VOE983542 | [1] | O-ring | |
| 58 | VOE14880816 | [1] | Back-up ring | |
| 59 | VOE983507 | [1] | O-ring | |
| 60 | VOE14880555 | [1] | Eye bolt | |
| 61 | VOE14636708 | [1] | Valve | |
| 62 | VOE983525 | [1] | O-ring | |
| 63 | SA7273-10030 | [1] | Control plunger | |
| 64 | VOE990740 | [2] | O-ring | |
| 65 | SA7273-10490 | [1] | Spring | |
| 66 | SA7273-10090 | [1] | Poppet | |
| 67 | SA7273-10780 | [2] | Ring | |
| 68 | SA7273-10580 | [1] | Spring | |
| 69 | SA7273-10020 | [4] | Plate | |
| 70 | VOE990566 | [4] | O-ring | |
| 71 | SA7273-10410 | [1] | Guard | |
| 72 | VOE14514691 | [1] | Valve | |
| 73 | SA7273-10400 | [1] | Cap | |
| 74 | VOE983543 | [1] | O-ring | |
| 75 | SA7273-10450 | [1] | Cap | |
| 76 | VOE983510 | [1] | O-ring | |
| 77 | SA7273-10030 | [1] | Control plunger | |
| 78 | SA7273-10510 | [1] | Spring | |
| 79 | SA7273-10130 | [1] | Peg | |
| 100 | VOE14506889 | [1] | Sealing kit | |
Hydraulic pump and valve parts are designed precisely to work in a hydraulic system to meet the prime product requirements for machine performance, reliability, durability, operating costs and productivity.
1. The pump and valve parts are built to fit to the genuine drive gearbox system.
2. The pump and valve parts are supplied strictly according to the genuine parts catalog.
3. All the pump and valve components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of pump parts that cover excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
