• 22U-979-1711 22B-979-1630 Compressor KOMATSU Excavator Air Conditioning Parts For PC138US-2





• Specification

Name	Compressor
Parts No	22U-979-1711 22B-979-1630
Machine Model	PC128US PC138 PC138US PC228
Category	Air Condition
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing





• Compatible models





• More other compressor parts fit for KOMATSU machine

198-Z11-X320 COMPRESSOR GROUP

D475A

423-S62-4330 COMPRESSOR ASS'Y

BATTERY, FRONT, HD785, PC70, WA150, WA150PZ, WA200, WA200PZ, WA250, WA250PZ, WA270, WA320, WA320PZ, WA380, WA380Z, WA430, WA470, WA480

421-07-11712 COMPRESSOR ASS'Y

WA200, WA300, WA350, WA400, WA450, WA500, WA600, WA800

561-07-82200 COMPRESSOR KIT

HD785

22B-979-1631 COMPRESSOR

CD110R, PC128US, PC128UU, PC138, PC138US, PC228, PC228US, PC308, PC78MR, PC78US, PC78UU

20Y-979-8130 COMPRESSOR ASS'Y

D41E, D41P, D41PF, D61E, D61EX, D61PX, D68ESS, PC1800, WA380

195-Z11-5300 COMPRESSOR ASS'Y

GD825A, HD325, HD465, HD785, WA500, WA600, WA700, WA800, WF600T

ND447200-0243 COMPRESSOR ASS'Y

D155A, D155AX, D155C, D275A, D275AX, D355A, D355C, D375A, D475A, D575A, D66S, D85A, D85C, D85E, D85P, D87E, D87P, PC160, PC1600, PC1600SP, PC180, PC1800, PC200, PC200LL, PC210, PC220, PC220LL, PC230

23S-878-2111 COMPRESSOR UNIT

LW250L

22B-979-1630 COMPRESSOR ASS'Y

GD555, GD655, GD675

425-S62-3321 COMPRESSOR ASS'Y

HD325, HD405, HM350, HM400, HYDRAULIC, WA500

56B-07-22202 COMPRESSOR KIT

HM350, HM400

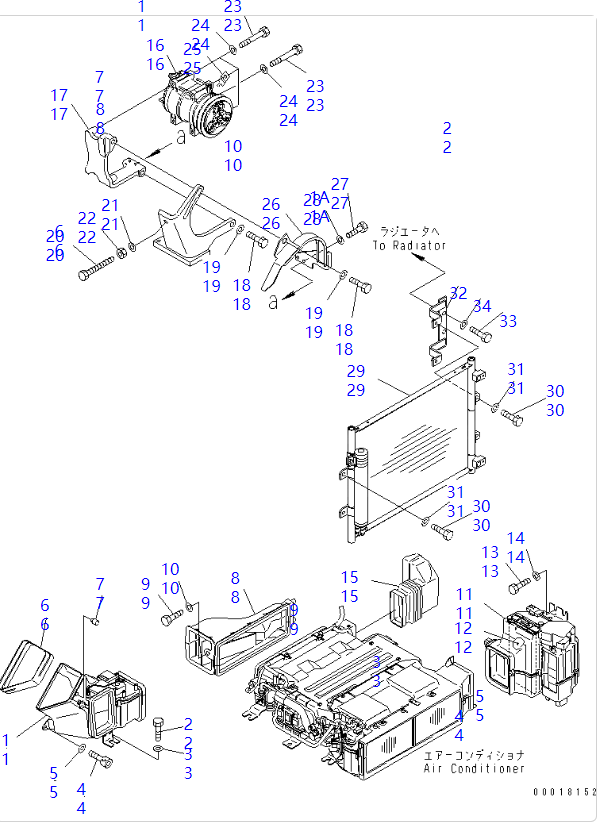

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	22B-979-1711	[1]	DUCT Komatsu China
			["SN: 4501-UP"]
2	01010-D1020	[1]	BOLT Komatsu	0.1 kg.
			["SN: 4501-UP"]
3	01643-71032	[1]	WASHER Komatsu	0.054 kg.
			["SN: 4501-UP"] analogs:["0164331032", "802150510", "0164331030", "0164381032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002"]
4	01252-80616	[1]	BOLT Komatsu	0.007 kg.
			["SN: 4501-UP"]
5	419-43-17760	[1]	WASHER Komatsu China
			["SN: 4501-UP"] analogs:["21W5432410"]
6	22U-979-2361	[1]	COVER Komatsu China
			["SN: 4501-UP"]
7	20Y-54-35780	[1]	STOPPER Komatsu China
			["SN: 4501-UP"]
8	22B-979-1691	[1]	DUCT Komatsu	2 kg.
			["SN: 4501-UP"]
11	22B-979-1720	[1]	DUCT Komatsu China
			["SN: 4501-UP"]
12.	22B-979-1740	[1]	FILTER Komatsu	0.095 kg.
			["SN: 4501-UP"] analogs:["22B979R740"]
15	22U-979-2341	[1]	DUCT Komatsu China
			["SN: 4501-UP"]
16	22U-979-1711	[1]	COMPRESSOR ASS'Y Komatsu	6.8 kg.
			["SN: 4501-UP"] analogs:["22B9791630"]
17	22B-979-1440	[1]	BRACKET Komatsu China
			["SN: 4501-UP"]
18	01010-81435	[2]	BOLT Komatsu China	0.06 kg.
			["SN: 4501-UP"] analogs:["0101061435", "0101051435", "0101031435"]
19	01643-31445	[2]	WASHER Komatsu	0.019 kg.
			["SN: 4501-UP"] analogs:["0164301432"]
20	22B-979-1750	[1]	BOLT Komatsu China
			["SN: 4501-UP"]
22	01580-11411	[1]	NUT Komatsu	0.022 kg.
			["SN: 4501-UP"] analogs:["0158001411"]
23	01010-80895	[4]	BOLT Komatsu	0.042 kg.
			["SN: 4501-UP"]
24	01643-30823	[4]	WASHER Komatsu	0.004 kg.
			["SN: 4501-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
25	08053-01510	[1]	CLIP Komatsu	0.112 kg.
			["SN: 4501-UP"]
26	22B-979-1540	[1]	COVER Komatsu China
			["SN: 4501-UP"]
27	01010-80816	[2]	BOLT Komatsu	0.022 kg.
			["SN: 4501-UP"] analogs:["0101050816", "801015084"]
29	22U-979-1740	[1]	CONDENSER ASS'Y Komatsu China
			["SN: 4501-UP"]
30	01010-80825	[4]	BOLT Komatsu	0.015 kg.
			["SN: 4501-UP"] analogs:["0101050825", "01010D0825", "801015087"]
32	22B-979-1550	[1]	BRACKET Komatsu China
			["SN: 4501-UP"]
33	01010-81020	[2]	BOLT Komatsu	0.161 kg.
			["SN: 4501-UP"] analogs:["801014093", "0101051020", "801015108"]
34	01643-31032	[2]	WASHER Komatsu	0.054 kg.
			["SN: 4501-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]







• We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







• Advantage



1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service







• Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
