EC460B EC480D
- More other control parts for Vo-lvo equipments
| VOE11410732 Control valve |
| L110E, L120E, L150E, L220E |
| |
| VOE12738501 Control unit |
| G900 MODELS, G900B |
| |
| PJ5270444 Control |
| EW50, EW50VV, EW70, EW70VV |
| |
| VOE14521978 Control lever |
| EC135B, EC140B, EC160B, EC180B, EC200B, EC210B, EC240B, EC290B, EC330B, EC360B, EC460B, EC700B, EC700BHR |
| |
| ZM2814089 Control lever |
| L40, L40B, L45, L45B |
| |
| VOE14539187 Control valve |
| Volvo.Heavy |
| |
| RM70930052 Control console |
| PT220RH/PT240RH |
| |
| RM70899364 Control box |
| PT220RH/PT240RH |
| |
| RM70907464 Control panel |
| PT220RH/PT240RH |
| |
| RM70714621 Control box |
| DD80 |
| |
| VOE14386409 Control valve |
| EW140C, EW180C, EW210C |
| |
| VOE14556410 Control valve |
| EC460B, EC460C |

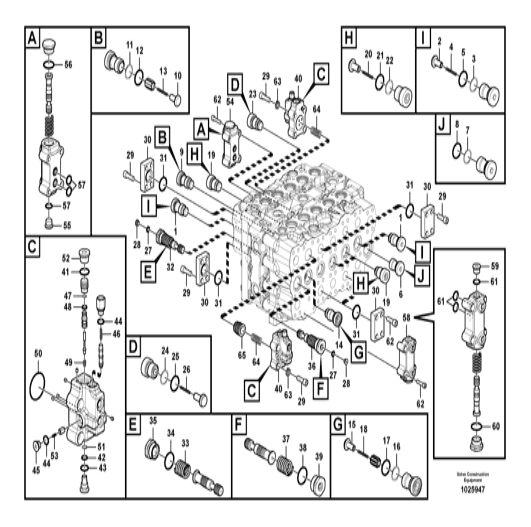

| Pos. | Part No | Qty | Parts name | Comments |
| | VOE14634178 | [1] | Control valve | |
| | VOE14641032 | | Control valve | |
| | VOE14640920 | | Control valve | |
| 1 | VOE14597207 | [2] | Non-return valve | |
| 2 | VOE14596240 | [1] | Valve | |
| 3 | VOE14882297 | [1] | Back-up ring | |
| 4 | VOE14596241 | [1] | Spring | |
| 5 | VOE983529 | [1] | O-ring | |
| 6 | VOE14601405 | [1] | Non-return valve | |
| 7 | VOE14882297 | [1] | Back-up ring | |
| 8 | VOE983529 | [1] | O-ring | |
| 9 | VOE14597209 | [1] | Non-return valve | |
| 10 | VOE14596240 | [1] | Valve | |
| 11 | VOE14882297 | [1] | Back-up ring | |
| 12 | VOE983529 | [1] | O-ring | |
| 13 | VOE14596241 | [1] | Spring | |
| 14 | VOE14601407 | [1] | Non-return valve | |
| 15 | VOE14596240 | [1] | Valve | |
| 16 | VOE14882297 | [1] | Back-up ring | |
| 17 | VOE983529 | [1] | O-ring | |
| 18 | VOE14596241 | [1] | Spring | |
| 19 | VOE14597214 | [5] | Non-return valve | |
| 20 | VOE14596241 | [1] | Spring | |
| 21 | VOE983529 | [1] | O-ring | |
| 22 | VOE14882297 | [1] | Back-up ring | |
| | VOE14626100 | | Non-return valve | |
| 23 | VOE14601411 | [1] | Non-return valve | |
| 24 | VOE14882297 | [1] | Back-up ring | |
| 25 | VOE14596241 | [1] | Spring | |
| 26 | VOE983529 | [1] | O-ring | |
| | VOE14597139 | | Non-return valve | |
| | VOE14599290 | | Non-return valve | |
| 27 | VOE983502 | [2] | O-ring | |
| 28 | SA7273-10751 | [2] | Cap | |
| 29 | VOE984135 | [32] | Hex. socket screw | |
| 30 | VOE14597146 | [6] | Flange | |
| 31 | VOE949238 | [6] | O-ring | |
| | VOE993326 | | O-ring | |
| 32 | VOE14597218 | [1] | Valve | |
| 33 | VOE14597150 | [1] | Spring | |
| 34 | VOE983532 | [1] | O-ring | |
| 35 | VOE14597148 | [1] | Plug | |
| 36 | VOE14632064 | [1] | Spool | |
| 36 | VOE14609642 | | Spool | |
| 37 | VOE14597150 | [1] | Spring | |
| 38 | VOE983532 | [1] | O-ring | |
| 39 | VOE14597148 | [1] | Plug | |
| 40 | VOE14597190 | [2] | Valve | |
| 41 | VOE990557 | [1] | O-ring | |
| 42 | VOE983495 | [1] | O-ring | |
| 43 | VOE983505 | [1] | O-ring | |
| 44 | VOE983502 | [2] | O-ring | |
| 45 | SA7273-10751 | [1] | Cap | |
| 46 | SA7273-10590 | [1] | Spring | |
| 47 | VOE14880814 | [1] | Back-up ring | |
| 48 | VOE983497 | [2] | O-ring | |
| 49 | SA7273-10530 | [1] | Spring | |
| 50 | VOE14535185 | [1] | O-ring | |
| | VOE990585 | | O-ring | |
| 51 | VOE14880812 | [1] | Back-up ring | |
| 52 | SA7273-10760 | [1] | Plug | |
| 53 | SA7273-10490 | [1] | Spring | |
| | SA7273-10090 | | Poppet | |
| 54 | VOE14624011 | [1] | Valve | |
| 55 | SA7273-10760 | [1] | Plug | |
| 56 | VOE983527 | [1] | O-ring | |
| 57 | VOE990557 | [3] | O-ring | |
| 58 | VOE14597192 | [1] | Valve | |
| 59 | SA7273-10760 | [1] | Plug | |
| 60 | VOE983527 | [1] | O-ring | |
| 61 | VOE990557 | [3] | O-ring | |
| 62 | VOE984083 | [8] | Hex. socket screw | |
| 63 | VOE14601625 | [8] | Washer | |
| 64 | VOE14597156 | [2] | Spring | |
| 65 | VOE14597157 | [1] | Valve | |
| 100 | VOE14609485 | [1] | Sealing kit | LH and RH Block |
| | VOE14609486 | [1] | Sealing kit | Middle Block |
