- 21Q6-10040 Wiring Harness HYUNDAI Excavator Spare Parts Fitting For R210LC-9 R220LC-9A
| Name | Wiring Harness |
| Parts No | 21Q6-10040 |
| Machine Model | R210LC9 R220LC9A R235LCR9 |
| Category | Boom Electric |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R210W-9 R210W9A R210W9S
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL HX235L
F-SERIES WHEEL EXCAVATOR HW210 Hyundai
- More other harness parts fit for HYUNDAI machine
| 21Q9-10207 HARNESS ENGINE |
| R320LC9 |
| |
| 21QA-10110 HARNESS-FRAME |
| R360LC9, R380LC9DM, R430LC9 |
| |
| 21QA-11104 HARNESS-FRAME |
| R360LC9, R430LC9 |
| |
| 21QA-10602 HARNESS-ENGINE |
| R360LC9, R380LC9DM, R380LC9MH, R430LC9 |
| |
| 21QA-10800 HARNESS-ENGINE |
| R360LC9, R430LC9 |
| |
| 21QA-10801 HARNESS-ENGINE |
| R360LC9, R430LC9 |
| |
| 21QB-10109 HARNESS-FRAME |
| R480LC9, R520LC9 |
| |
| 21QB-20500 HARNESS-ENGINE |
| R480LC9, R520LC9 |
| |
| 21QB-20501 HARNESS-ENGINE |
| R480LC9, R520LC9 |
| |
| 21QD-20701 HARNESS-BOOM |
| R700LC9, R800LC-9 |
| |
| 21QD-10106 HARNESS-FRAME |
| R800LC-9 |
| |
| 21QD-10107 HARNESS-FRAME |
| R800LC-9 |
| |
| 21N8-10092 HARNESS-WIPER |
| HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R160LC9, R160LC9... |
| |
| 21Q6-10704 HARNESS-CAB |
| HX180L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9, R210LC9B... |
| |
| 21QE-11101 HARNESS-PUMP PS |
| R1200-9 |
| |
| 21QE-10202 HARNESS-ENGINE |
| R1200-9 |
| |
| 21QE-10302 HARNESS-BOOM |
| R1200-9 |
| |
| 21QE-10400 HARNESS-CAMERA |
| R1200-9 |
| |
| 21QE-11300 HARNESS-RR WORK LAMP |
| R1200-9 |
| |
| 21QE-10105 HARNESS-FRAME |
| R1200-9 |
| |
| 21QE-10102 HARNESS-FRAME |
| R1200-9 |
| |
| 21QE-94160 HARNESS PRE HEAT |
| R1200-9 |
| |
| 21S7-30053 HARNESS FRAME |
| HSL850-7A |
| |
| 21S7-30052 HARNESS FRAME |
| HSL850-7A |
| |
| 21Q6-10504 HARNESS-LH CONSOLE |
| HX180L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140LC9V, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R220LC9A, R220NLC9A, R250LC9, R250LC9A, R260L... |
| |
| 21Q6-10604 HARNESS-RH CONSOLE |
| HX180L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9S, R160LC9, R160LC9A, R160LC9S, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R21... |
| |
| 4096485 HARNESS-WIRING |
| R1200-9 |
| |
| 21Q4-60603 HARNESS-FRAME |
| R140LC9 |
| |
| 21Q4-60604 HARNESS-FRAME |
| R140LC9 |
| |
| 21Q4-60605 HARNESS-FRAME |
| R140LC9 |

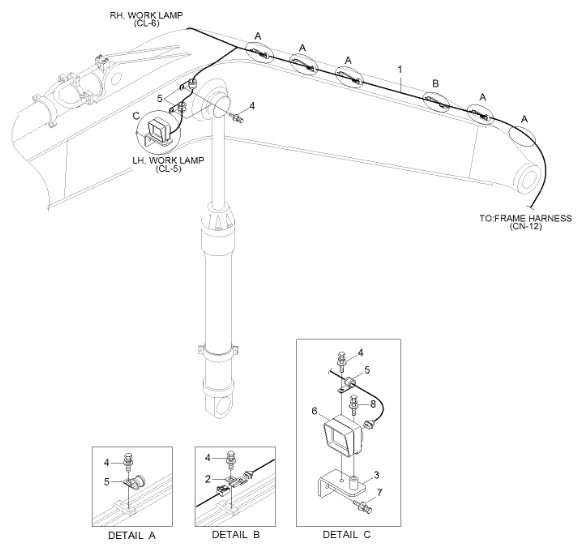

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21Q6-10040 | [1] | HARNESS-BOOM WIRE | |
| 2 | 25D1-10640 | [1] | CLIP ASSY | |
| 3 | 21QB-20240 | [2] | BRACKET-LIGHT | |
| 4 | S037-101526 | [9] | BOLT-W/WASHER | |
| 5 | 31L7-10350 | [11] | CLAMP | |
| 6 | 21QB-60700 | [2] | WORK LAMP ASSY | |
| 6-1. | S866-240650 | [1] | BULB | NOT SHOWN |
| 7 | S037-122526 | [2] | BOLT-W/WASHER | |
| 8 | S037-102026 | [2] | BOLT-W/WASHER | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
