• 706-8L-01010 7068L01010 Motor ASS'Y KOMATSU Excavator Spare Parts For PC600LC-8E0





• Specification

Name	Motor ASS'Y
Parts No	706-8L-01010 7068L01010
Machine Model	PC550 PC600 PC650
Category	Track Frame,Inner Parts
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing





• Compatible models

EXCAVATORS PC550 PC600 PC650 Komatsu





• More other motor parts fit for KOMATSU machine

708-7W-00120 MOTOR ASS'Y

COOLANT, PC600, PC650, PC700

ND116340-3860 MOTOR ASS'Y,FAN

PC1250, PC1250SP

706-88-02100 MOTOR ASS'Y

PC600

706-75-01430 MOTOR ASS'Y

PC600

706-75-03440 MOTOR SUB ASS'Y

PC600

706-75-03361 MOTOR SUB ASS'Y

PC600, PC650

ND116340-7030 MOTOR ASS'Y,FAN

PC130, PC160, PC180, PC200, PC2000, PC210, PC220, PC270, PC290, PC300, PC300HD, PC300LL, PC340, PC350, PC360, TRAVEL, WA600, WD600

ND116340-7350 Motor Assembly

PC130, PC300, PC350, PC400, PRESSURE, RAIN

YM172164-73311 MOTOR

PC40FR

YM172164-73330 MOTOR

PC40FR

195-Z11-8530 MOTOR ASS'Y,R.H.

D155A, D275A, D375A, D61E, D65E

708-8K-00032 MOTOR ASS'Y

BR200S, PC300HD, PC400, PC400HD, PC410

YM172176-73330 MOTOR ASS'Y

PC50FR

YM172176-73311 MOTOR ASS'Y

PC50FR

YM172421-73300 MOTOR ASS'Y,DRIVING

PC20FR

37A-942-2010 MOTOR FAN

CK30, CK35, SK1020, SK1026, SK815, SK818, SK820

706-73-01121 MOTOR ASS'Y

PC100, PC100L, PC120, PC130, PW130

7834-41-2003 MOTOR ASS'Y

BZ210, D275A, PC160, PC200, PC220, PC228, PC228US, PC270

YM12995377019 MOTOR, STARTER

WB140, WB140PS, WB150, WB150AWS, WB150PS, WB91R, WB93R, WB97R, WB97S

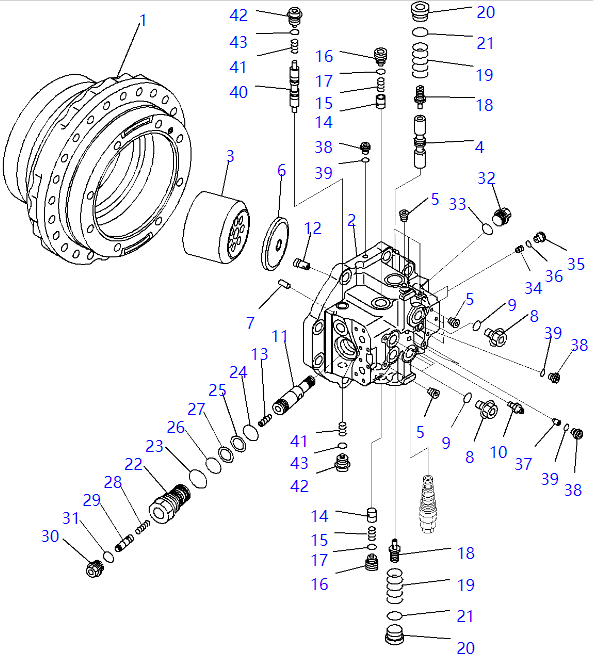

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	21M-27-00050	[1]	Final Drive Assembly Komatsu China
			["SN: 65001-UP"] |$0.
	706-8L-01010	[1]	Motor Assembly Komatsu	268 kg.
			["SN: 65001-UP"] |$1.
1	706-88-40220	[1]	Motor Komatsu	142 kg.
			["SN: 65001-UP", "SCC: C2"]
	706-8L-00010	[1]	Cover Assembly, End Komatsu China
			["SN: 65001-UP", "SCC: C2"] |$3.
7	708-8K-15190	[1]	Pin, Dowel Komatsu China
			["SN: 65001-UP", "SCC: C2"]
8	706-77-72170	[4]	Plug Komatsu	0.115 kg.
			["SN: 65001-UP"]
9	07002-12434	[4]	O-ring Komatsu China	0.01 kg.
			["SN: 65001-UP"] analogs:["0700202434", "0700213434"]
10	20B-27-11210	[1]	Bleeder Komatsu	0.02 kg.
			["SN: 65001-UP"]
11	706-8L-51010	[1]	Piston Komatsu China
			["SN: 65001-UP", "SCC: C2"]
12	706-8L-51020	[1]	Pin Komatsu China
			["SN: 65001-UP", "SCC: C2"]
13	706-87-51120	[1]	Screw Komatsu China
			["SN: 65001-UP", "SCC: C2"]
14	706-7G-71710	[2]	Valve Komatsu	0.1 kg.
			["SN: 65001-UP"]
15	706-75-74550	[2]	Spring Komatsu	0.012 kg.
			["SN: 65001-UP"]
16	706-75-74850	[2]	Plug Komatsu China
			["SN: 65001-UP"]
17	07002-13334	[2]	O-ring Komatsu China	0.025 kg.
			["SN: 65001-UP"] analogs:["0700203334"]
18	706-78-71580	[2]	Piston Komatsu China
			["SN: 65001-UP"]
19	706-78-71280	[2]	Spring Komatsu China
			["SN: 65001-UP"]
20	706-78-71230	[2]	Plug Komatsu China
			["SN: 65001-UP"]
21	07002-13634	[2]	O-ring Komatsu China	0.013 kg.
			["SN: 65001-UP"] analogs:["0700203634"]
	706-88-00210	[1]	Sleeve Subassembly Komatsu China
			["SN: 65001-UP"] |$24.
22	706-88-50250	[1]	Sleeve Komatsu China
			["SN: 65001-UP", "SCC: C2"]
23	07002-15234	[1]	O-ring Komatsu China	0.01 kg.
			["SN: 65001-UP"] analogs:["855021829", "0700205234"]
24	07000-13035	[1]	O-ring Komatsu China	0.03 kg.
			["SN: 65001-UP"] analogs:["0700003035"]
25	706-88-50310	[1]	Ring, Back-up Komatsu China
			["SN: 65001-UP"]
26	07000-13038	[1]	O-ring Komatsu China	0.03 kg.
			["SN: 65001-UP"] analogs:["0700213038"]
27	706-88-50320	[1]	Ring, Back-up Komatsu China
			["SN: 65001-UP"]
28	706-8E-14170	[1]	Spring Komatsu	0.01 kg.
			["SN: 65001-UP", "SCC: C2"]
29	706-88-50240	[1]	Spool Komatsu China
			["SN: 65001-UP", "SCC: C2"]
30	706-88-50160	[1]	Plug Komatsu China
			["SN: 65001-UP", "SCC: C2"]
31	07002-13034	[1]	O-ring Komatsu China	0.005 kg.
			["SN: 65001-UP"] analogs:["0700203034"]
32	706-77-71670	[1]	Plug Komatsu China
			["SN: 65001-UP"]
34	706-86-53410	[2]	Valve Komatsu China
			["SN: 65001-UP"]
35	708-8E-16160	[2]	Plug Komatsu	0.01 kg.
			["SN: 65001-UP"]
36	07002-11023	[2]	O-ring Komatsu China	0.025 kg.
			["SN: 65001-UP"] analogs:["0700201023"]
37	708-8E-16180	[2]	Valve Komatsu	0.004 kg.
			["SN: 65001-UP"]
40	706-78-71430	[1]	Spool Komatsu China
			["SN: 65001-UP", "SCC: C2"]
41	706-78-71440	[2]	Spring Komatsu China
			["SN: 65001-UP"]
42	706-78-71260	[2]	Plug Komatsu China
			["SN: 65001-UP"]
43	07002-12034	[2]	O-ring Komatsu China	0.94 kg.
			["SN: 65001-UP"] analogs:["0700002034", "0700202034", "0700012034"]







• We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







• Advantage



1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service







• Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
