• 2966232 296-6232 Carrier Excavator Swing Gear For 328D LCR 336D 336D L 336D LN







• Specification

Application	C A T Excavator Swing Gear
Name	Carrier
Parts No	2966232 296-6232
Model	328D LCR 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing







• Applicable models

EXCAVATOR 328D LCR 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L
MOBILE HYD POWER UNIT 336E HVG







• More carrier parts supplied to C A T machine

1912511 CARRIER-PLANETARY

330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L, 385B, 385C, 3...

1484607 CARRIER-PLANETARY

330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L, 385B, 385C, 3...

7I7728 CARRIER-PLANETARY

1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 322 FM L, 322B L, 322B LN, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 324E, 324E L, 324E LN, 325B, 325B L, 325C, 325C FM, ...

1912579 CARRIER-PLANETARY

1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D FM, 325D FM LL, 325D L, 325D M...

7Y0643 CARRIER

325 L, 328D LCR, 330, 330 FM L, 330 L, 330C L, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0731 CARRIER AS

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

7Y0645 CARRIER

325 L, 325C, 328D LCR, 330, 330 FM L, 330 L, 330B, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, OEMS

1994750 CARRIER-PLANETARY

325C, 328D LCR, 330C, 330C FM, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH

2966183 CARRIER-PLANETARY

328D LCR, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L

2966194 CARRIER-PLANETARY

328D LCR, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L

3789523 CARRIER-PLANETARY

336D2, 390F L

3789531 CARRIER AS

336D2, 390F L

2966194 CARRIER-PLANETARY

328D LCR, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L

2966183 CARRIER-PLANETARY

328D LC

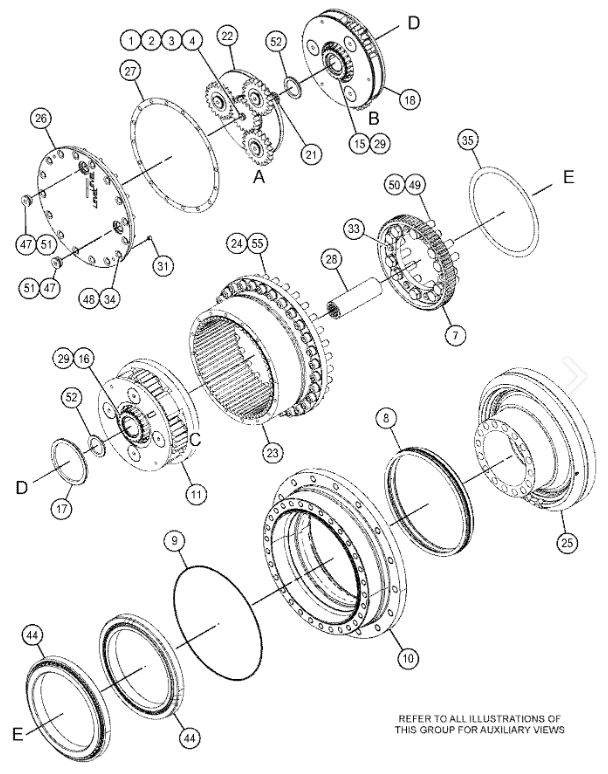

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	094-0577	[1]	PLATE (7-MM THK)
2	094-0578	[1]	PLATE (8-MM THK)
3	094-0579	[1]	PLATE (9-MM THK)
4	094-0580	[1]	PLATE (10-MM THK)
5	136-2898	[14]	WASHER (58.3X89X1-MM THK)
6	191-2690	[6]	WASHER (42.3X70X1-MM THK)
7	227-6192	[1]	GEAR-COUPLING
8	255-2272	[1]	SEAL GP-DUO-CONE
	205-9114	[2]	RING-TORIC
9	295-9234	[1]	SEAL-O-RING
10	296-6181	[1]	HOUSING
11	296-6183	[1]	CARRIER-PLANETARY
12	296-6184	[4]	GEAR-PLANETARY (21-TEETH)
13	296-6185	[4]	SHAFT
14	296-6186	[3]	GEAR-PLANETARY (21-TEETH)
15	296-6189	[1]	GEAR-SUN (20-TEETH)
16	296-6190	[1]	GEAR-SUN (20-TEETH)
17	296-6192	[1]	SPACER (143X170X8-MM THK)
18	296-6194	[1]	CARRIER-PLANETARY
19	296-6195	[3]	SHAFT
20	296-6230	[3]	GEAR-PLANETARY (21-TEETH)
21	296-6231	[1]	GEAR-SUN (20-TEETH)
22	296-6232	[1]	CARRIER AS
23	296-6311	[1]	GEAR-RING (64-TEETH)
24	451-2176	[30]	WASHER-HARD (22X35X3.5-MM THK)
25	452-3518	[1]	HOUSING-MOTOR
26	470-7587	[1]	COVER
27	501-7237	[1]	GASKET
28	507-8035	[1]	COUPLING
29	093-1731	[2]	RING-RETAINING
30	095-0891	[7]	PIN-SPRING
31	096-3216 M	[2]	SETSCREW-SOCKET (M12X1.75X12-MM)
32	096-8058	[3]	RING-RETAINING
33	114-1541	[6]	PIN-DOWEL
34	143-0811 M	[16]	BOLT (12X1.75X35-MM)
35	267-6809 B	[1]	SHIM (0.75-MM THK)
	267-6810 B	[1]	SHIM (0.85-MM THK)
	267-6811 B	[1]	SHIM (0.9-MM THK)
	267-6812 B	[1]	SHIM (0.95-MM THK)
	267-6813 B	[1]	SHIM (1.2-MM THK)
	267-6814 B	[1]	SHIM (1.4-MM THK)
	267-6815 B	[1]	SHIM (1.8-MM THK)
	267-6816 B	[1]	SHIM (2-MM THK)
	267-6817 B	[1]	SHIM (2.3-MM THK)
	7Y-1056 B	[1]	SHIM (0.8-MM THK)
	7Y-1057 B	[1]	SHIM (1-MM THK)
44	279-0344	[2]	BEARING AS-TAPERED ROLLER
45	296-6247	[11]	BEARING AS-ROLLER
46	296-6248	[3]	BEARING AS-ROLLER
47	3E-2338	[2]	PLUG-PIPE
48	5P-8245	[16]	WASHER-HARD (13.5X25.5X3-MM THK)
49	6V-8133 M	[10]	BOLT (M24X3X80-MM)
50	6V-8237	[10]	WASHER (26X44X4-MM THK)
51	7M-8485	[2]	SEAL-O-RING
52	7Y-0595	[2]	SPACER (58X79.6X6-MM THK)
55	7Y-5217 M	[30]	BOLT-SOCKET HEAD (M20X2.5X70-MM)
	B		USE AS REQUIRED
	M		METRIC PART
