- 385-4570 3854570 Floating Oil Seal Excavator Final Drive Parts Fitting For 735C 740C C15
| Name | Floating Oil Seal |
| Parts No | 385-4570 3854570 |
| Machine Model | 735C 740 740C 740EJ 745 745C |
| Category | Articulated Truck Spare Part, Final Drive |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
735C 740 740C 740EJ 745 745C C.aT.
- More other oil seal parts fit for C A T machine
| 3786920 SEAL |
| Ca.terpill.ar |
| |
| 3679385 SEAL-O-RING |
| Ca.terpill.ar |
| |
| 3679384 SEAL-O-RING |
| Ca.terpill.ar |
| |
| 3661382 SEAL-WEAR SLEEVE |
| Ca.terpill.ar |
| |
| 3601419 SEAL-LIP TYPE |
| Ca.terpill.ar |
| |
| 9W6672 SEAL GP-DUO CONE |
| Ca.terpill.ar |
| |
| 4518250 SEAL |
| Ca.terpill.ar |
| |
| 4488275 SEAL-O-RING |
| Ca.terpill.ar |
| |
| 4309131 SEAL-O-RING |
| Ca.terpill.ar |

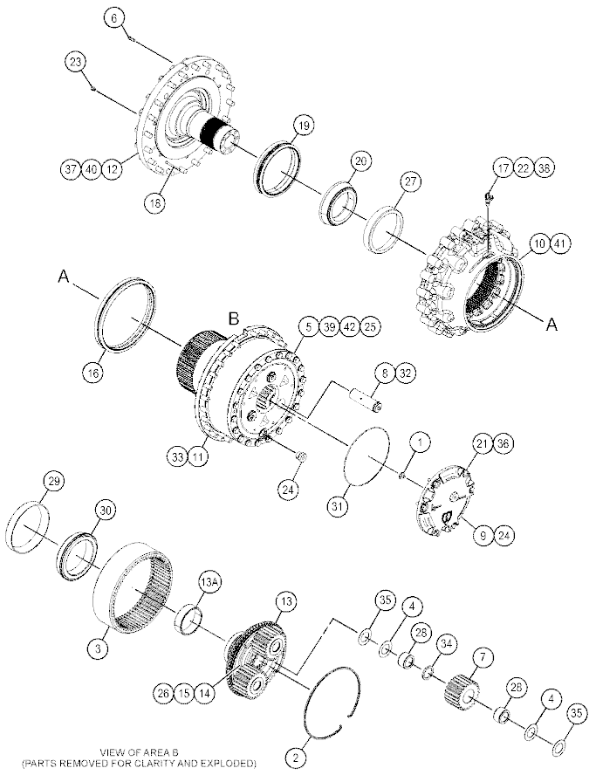

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2D-0604 | [1] | BUTTON | |
| 2 | 2V-5656 | [1] | RING-SNAP | |
| 3 | 4V-4504 | [1] | GEAR-RING (65-TEETH) | |
| 4 | 4V-5233 | [6] | WASHER-THRUST (48X80X1.6-MM THK) | |
| 5 | 4V-5237 | [1] | CARRIER-PLANETARY | |
| 6 | 5H-3701 | [1] | SCREW-PURGE | |
| 7 | 147-1206 | [3] | GEAR (23-TEETH) | |
| 8 | 190-3593 | [3] | SHAFT-PLANETARY | |
| 9 | 301-2806 | [1] | COVER | |
| 10 | 365-3961 Y | [1] | BRAKE GP-SERVICE | |
| 11 | 365-4323 | [1] | WHEEL | |
| 12 | 365-4324 | [1] | SPINDLE | |
| 13 | 371-1193 | [1] | HUB AS | |
| 13A. | | [1] | BUSHING | |
| 14 | 371-1196 | [1] | PLATE-RETAINER | |
| 15 | 371-1197 B | [1] | SHIM PACK (INCLUDES 12-SHIMS) | |
| 16 | 385-4570 | [1] | SEAL GP-DUO-CONE (FINAL DRIVE) | |
| 17 | 419-4942 | [1] | SENSOR GP-SPEED (WHEEL) | |
| 18 | 423-1523 | [1] | INDICATOR AS-BRAKE WEAR | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6H-9691 | [1] | SEAL-O-RING | |
| 19 | 469-9174 | [1] | SEAL GP-DUO-CONE (FINAL DRIVE) | |
| 20 | 453-7903 | [1] | CONE-BEARING | |
| 21 | 0S-1585 | [6] | BOLT (1/2-13X1.5-IN) | |
| 22 | 117-1385 | [1] | SEAL-O-RING | |
| 23 | 155-3624 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 9S-4182 | [1] | PLUG (7/16-20-THD) | |
| 24 | 165-4929 | [2] | PLUG AS-MAGNETIC | |
| | | | (EACH INCLUDES) | |
| | 5P-4484 | [1] | PLUG-MAGNETIC | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 25 | 178-3707 M | [20] | BOLT (M16X2X50-MM) | |
| 26 | 189-6123 M | [8] | BOLT-12 POINT HEAD (M12X1.75X60-MM) | |
| 27 | 1M-6573 | [1] | CUP-BEARING (TAPERED ROLLER) | |
| 28 | 1P-3958 | [6] | ROLLER AS-SPECIAL | |
| 29 | 2P-1823 | [1] | CUP-BEARING (TAPERED ROLLER) | |
| 30 | 2P-1824 | [1] | CONE-BEARING (TAPERED ROLLER) | |
| 31 | 2R-0239 | [1] | SEAL-O-RING | |
| 32 | 2V-7398 | [3] | RING-RETAINING | |
| 33 | 321-7848 | [27] | STUD-WHEEL | |
| 34 | 4V-4500 | [3] | SPACER (51X66X5-MM THK) | |
| 35 | 4V-5234 | [6] | WASHER-THRUST (48X80X1.52-MM THK) | |
| 36 | 5P-8245 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 37 | 6V-5845 M | [20] | BOLT (M20X2.5X70-MM) | |
| 38 | 6V-8210 M | [1] | BOLT (M8X1.25X16-MM) | |
| 39 | 8D-2714 | [1] | SEAL-O-RING | |
| 40 | 8T-3282 | [20] | WASHER-HARD (22X35X3.5-MM THK) | |
| 41 | 9X-6279 M | [3] | SETSCREW-SOCKET (M8X1.25-THD) | |
| 42 | 9X-8268 | [20] | WASHER (17.5X30X3.5-MM THK) | |
| | B | | USE AS REQUIRED | |
| | M | | METRIC PART | |
| | Y | | SEPARATE ILLUSTRATION | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
Product Tags:
|
|
385-4570 3854570 Floating Oil Seal Excavator Final Drive Parts Fitting For 735C 740C C15 Images
|
