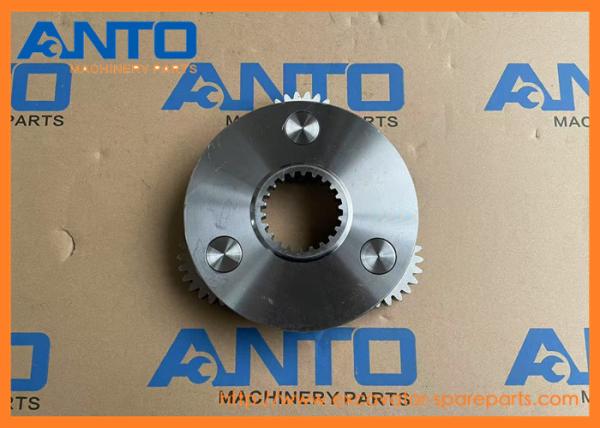

- VOE14515067 14515067 Planet Carrier Excavator Swing Gearbox Parts Fitting For EC170D
| Name | Planet Carrier |
| Parts No | VOE14515067 14515067 |
| Machine Model | EC160B EC160C EC160D EC160E EC170D EC180B |
| Category | Swing Gearbox |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
HEAVY EC160B EC160C EC160D EC160E EC170D EC180B EC180C EC180D EC180E Vo.lvo
- More other sun gear parts fit for V O L V O machine
| VOE14528728 Planet carrier |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, FC2121C |
| |
| VOE14515064 Planet carrier |
| EC150, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E |
| |
| VOE14528727 Planet carrier |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, FC2121C |
| |
| VOE14528723 Planet carrier |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, FC2121C |
| |
| SA7118-30200 Planet carrier |
| Volvo.Heavy |
| |
| SA7118-30210 Planet carrier |
| Volvo.Heavy |
| |
| VOE14528727 Planet carrier |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, FC2121C |
| |
| SA7118-23410 Planet carrier |
| Volvo.Heavy |
| |
| VOE14515064 Planet carrier |
| EC150, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E |
| |
| SA7117-38391 Planet carrier |
| Volvo.Heavy |
| |
| VOE56055 Planet shaft |
| L60G |
| |
| VOE14551153 Planet carrier |
| EC235C, EC240B, EC290C, EC360C |
| |
| VOE14608961 Planet carrier |
| EC460C, EC460CHR, EC480D, EC480DHR, EC480EHR, PL4608 |
| |
| VOE14528723 Planet carrier |
| EC140B, EC140C, EC140D, EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, FC2121C |
| |
| VOE14551156 Planet carrier |
| EC235C, EC240B, EC290, EC290B, EC290C |
| Pos. | Part No | Qty | Parts name | Comments |
| | VOE14515046 | [1] | Transmission | SER NO 10001-11032 |
| | VOE14541067 | [1] | Reduction gear | SER NO 11033- |
| 1 | VOE14515058 | [1] | Shaft | |
| 2 | VOE14515060 | [1] | Ring | |
| 3 | SA9415-43012 | [1] | Plug | |
| 4 | VOE14515059 | [1] | Collar | |
| 5 | VOE14515063 | [1] | Seal | |
| 6 | SA9481-11003 | [1] | Nipple | |
| 7 | VOE14515061 | [1] | Bearing | |
| 8 | VOE14516440 | [1] | Bearing | |
| 9 | SA9541-01085 | [1] | Retaining ring | |
| 10 | SA9324-21212 | [2] | Pin | |
| 11 | VOE984358 | [10] | Hex. socket screw | |
| 12 | VOE949329 | [1] | Gasket | |
| 13 | SA1012-01500 | [1] | Valve | SER NO 10001-10238 |
| | VOE14722461 | [1] | Draining valve | SER NO 10239- |
| 14 | VOE14515066 | [1] | Gear | |
| 15 | SA1036-00120 | [1] | Thrust washer | |
| 16 | SA7118-27310 | [1] | Gear | |
| 17 | VOE14518855 | [1] | Pipe | SER NO 10001-11032 |
| | VOE14540597 | [1] | Pipe | SER NO 11033- |
| 18 | VOE14515064 | [1] | Planet carrier | No 2 |
| 19 | SA7118-23240 | [4] | Pin | |
| 20 | SA7147-00150 | [8] | Thrust washer | |
| 21 | SA9325-06012 | [4] | Spring pin | |
| 22 | SA7118-23250 | [4] | Bushing | |
| 23 | VOE14515067 | [1] | Planet carrier | No 1 |
| 24 | VOE14515071 | [3] | Bearing | |
| 25 | VOE14515070 | [3] | Washer | |
| 26 | SA7114-32620 | [3] | Thrust washer | |
| 27 | SA9541-01032 | [3] | Retaining ring | |
| 28 | SA9325-06012 | [3] | Spring pin | |
| 29 | VOE14515069 | [3] | Bearing spindle | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
